65 13 070 Removing and installing/replacing speaker (mid-range speaker, door at front)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

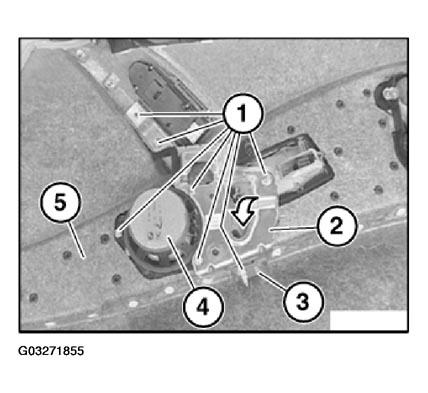

Unscrew nuts (1).
Remove retaining plate (2) in direction of arrow.
Installation:
Retaining plate (2) must be positioned over pin (3).
Remove speaker (4) upwards out of front door trim panel (5).
