65 11 ... Instructions on setting the installation location on the CD changer

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For special tools, refer to AUDIO, NAVIGATION & ANTI-THEFT - SPECIAL TOOLS - E60 .

Special Tools Required:

65 1 170

NOTE: Carry out the following work steps if the CD changer magazine is not automatically ejected.

Insert special tool 65 1 170 on left under CD changer magazine (1) and carefully remove special tool with CD changer magazine (1) from CD changer (2).

Installation:

Check position of CDs in CD changer magazine.

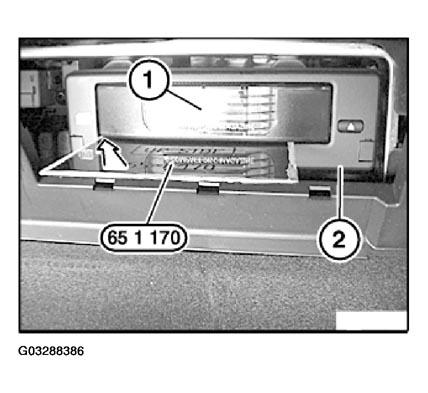

Fig 1: Removing CD Changer Magazine Using Eject Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A modified CD changer magazine is available from 10/2004 which eliminates incorrect loading.

Checking CD changer magazine:

Pull CD slot (1) out of CD changer (2) and check top side at retaining lugs (3) on right/left.

(A): CD changer magazine before 10/04:

No retaining lugs on right/left.

Replace CD changer magazine.

(B): CD changer magazine from 10/04:

Retaining lugs (3) present on right/left.

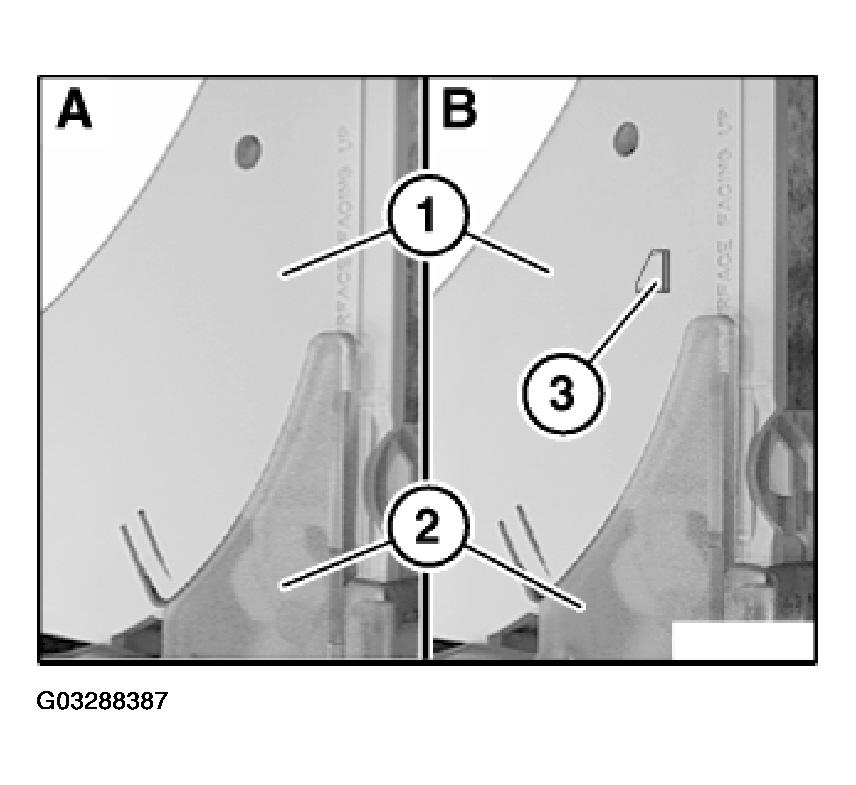

Fig 2: Identifying Modified CD Changer Magazine

Courtesy of BMW OF NORTH AMERICA, INC.
