65 83 600 Replacing HIP module for Car Communication Computer

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove Car Communication Computer. Refer to 65 83 010 REMOVING AND INSTALLING/REPLACING CAR COMMUNICATION COMPUTER .

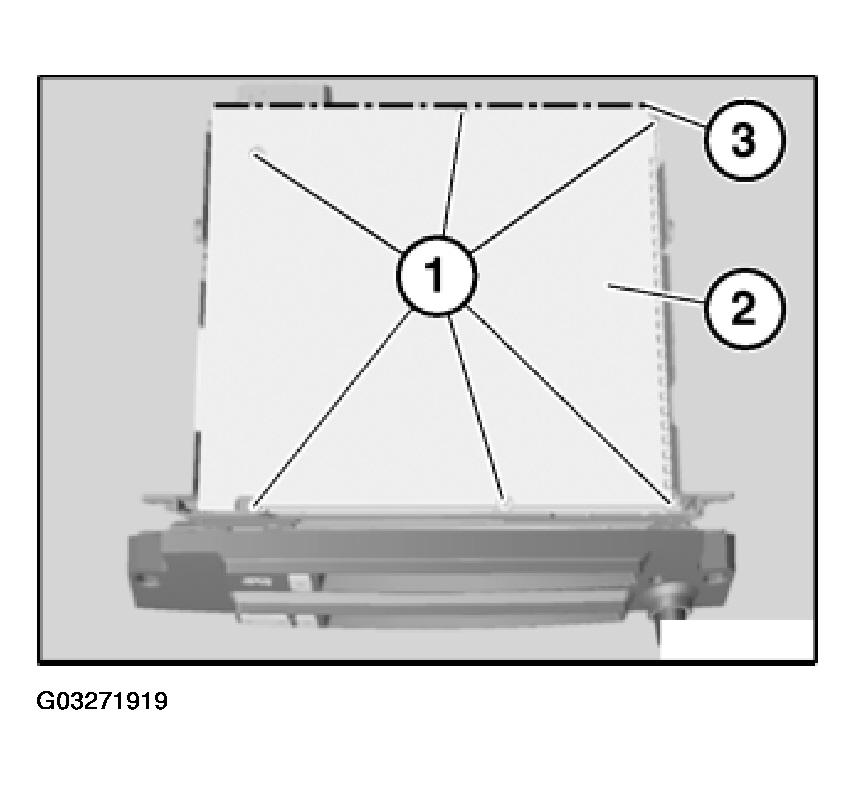

Release screws (1).

Remove floor pan (2) towards bottom and set down.

IMPORTANT: Contact spring strip (3) on floor pan (2) must not be bent: otherwise risk of short-circuiting! When reinstalling floor pan (2), make sure individual springs of contact spring strip (3) are correctly seated.

Fig 1: Identifying Floor Pan Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

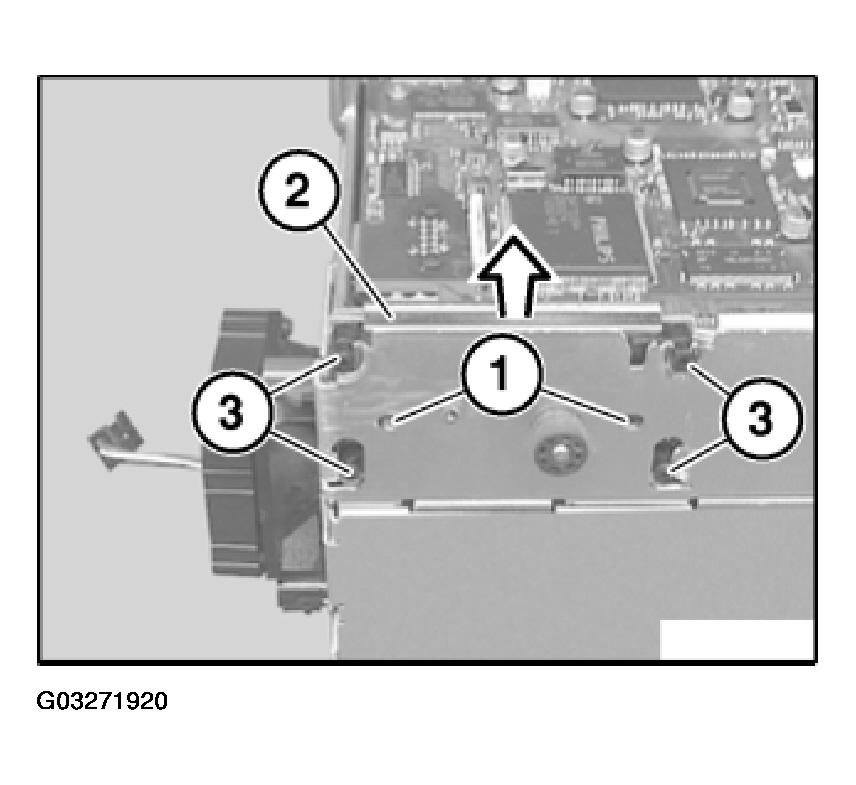

Press catches (1) and feed out HIP module for Car Communication Computer (2) in direction of arrow.

Installation:

Make sure guides (3) of HIP module for Car Communication Computer (2) are correctly seated.

Fig 2: Removing Car Communication Computer HIP Module

Courtesy of BMW OF NORTH AMERICA, INC.

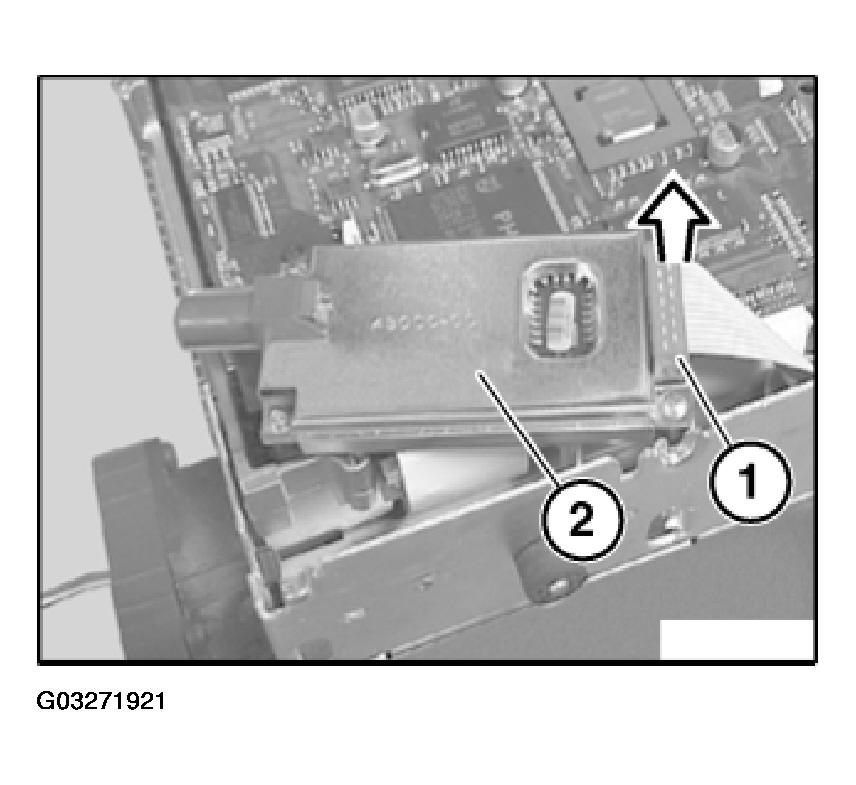

Disconnect plug connection (1) in direction of arrow and remove HIP module for Car Communication Computer (2).

Fig 3: Locating HIP Module Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out initialization with DIS.
