65 83 590 Removing and installing/replacing gyro sensor drive for Car Communication Computer

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove Car Communication Computer. Refer to 65 83 010 REMOVING AND INSTALLING/REPLACING CAR COMMUNICATION COMPUTER .

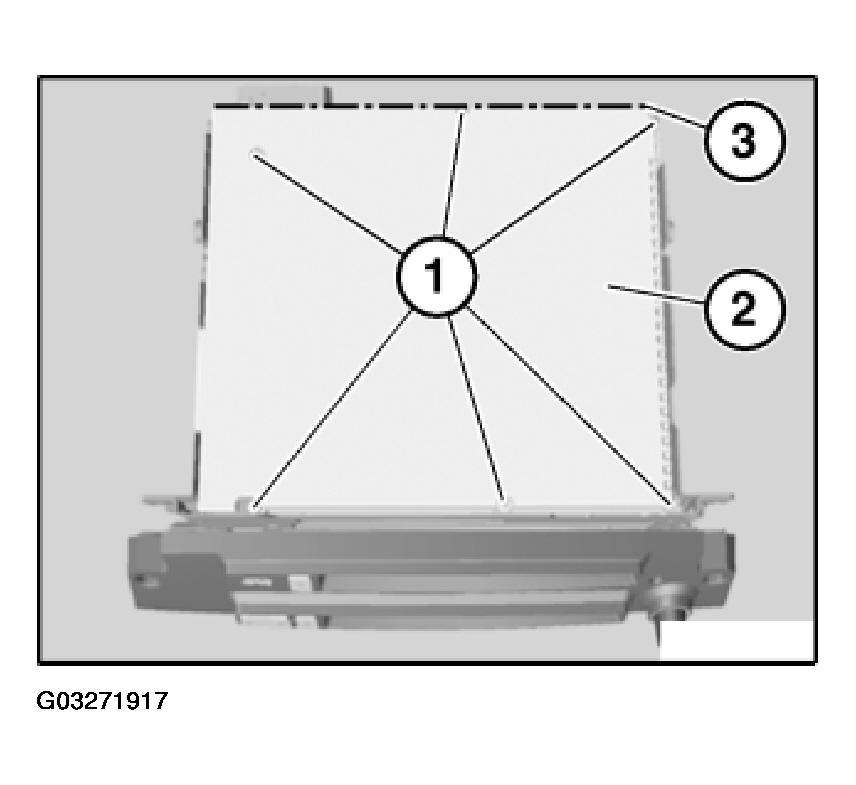

Release screws (1).

Remove floor pan (2) towards bottom and set down.

IMPORTANT: Contact spring strip (3) on floor pan (2) must not be bent: otherwise risk of short-circuiting! When reinstalling floor pan (2), make sure individual springs of contact spring strip (3) are correctly seated.

Fig 1: Locating Floor Pan Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

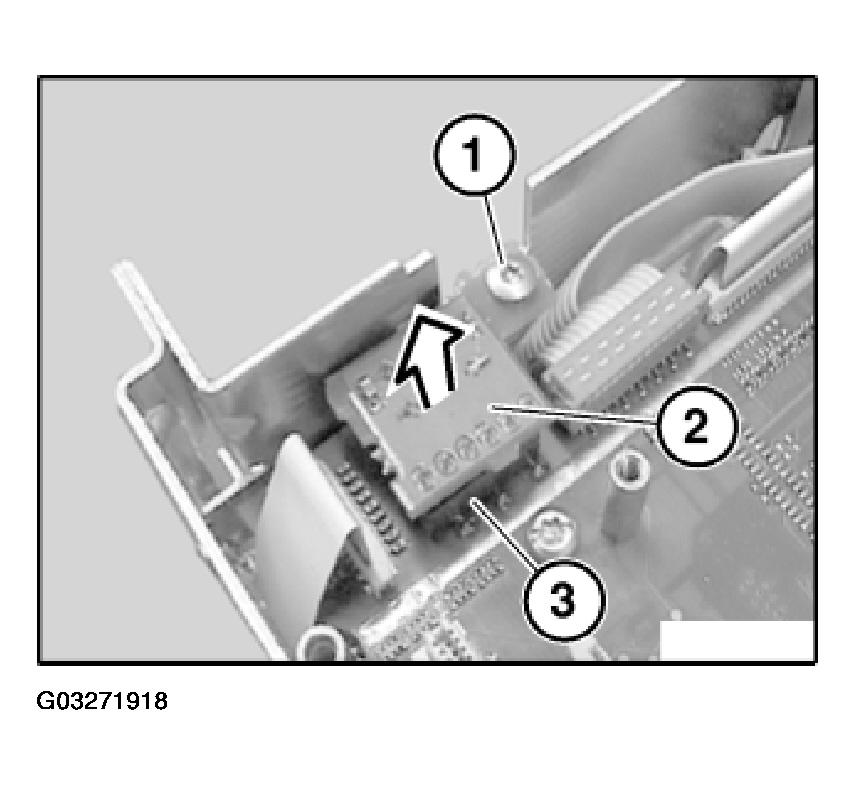

Release screw (1).

Detach gyro sensor for Car Communication Computer (2) in direction of arrow from plug-in contact (3).

Fig 2: View Of Car Communication Computer Gyro Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
