65 83 570 Removing and installing/replacing CD drive for Car Communication Computer

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For special tools, refer to AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

64 1 020

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove front trim for Car Communication Computer. Refer to 65 83 560 REMOVING AND INSTALLING/REPLACING FRONT TRIM FOR CAR COMMUNICATION COMPUTER .

Raise cover (1) with special tool 64 1 020 all round and remove from Car Communication Computer (2).

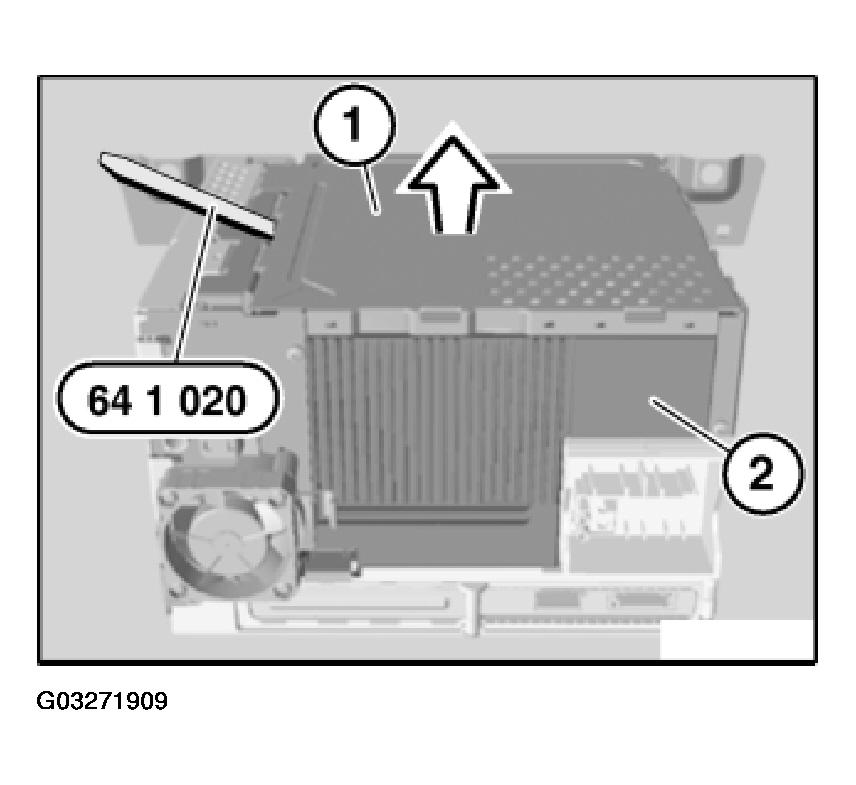

Fig 1: Removing Computer Cover Using Release Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed CD drive for Car Communication Computer (2) in direction of arrow out of Car Communication Computer (3) and set down.

Installation:

Ensure correct routing of cables.

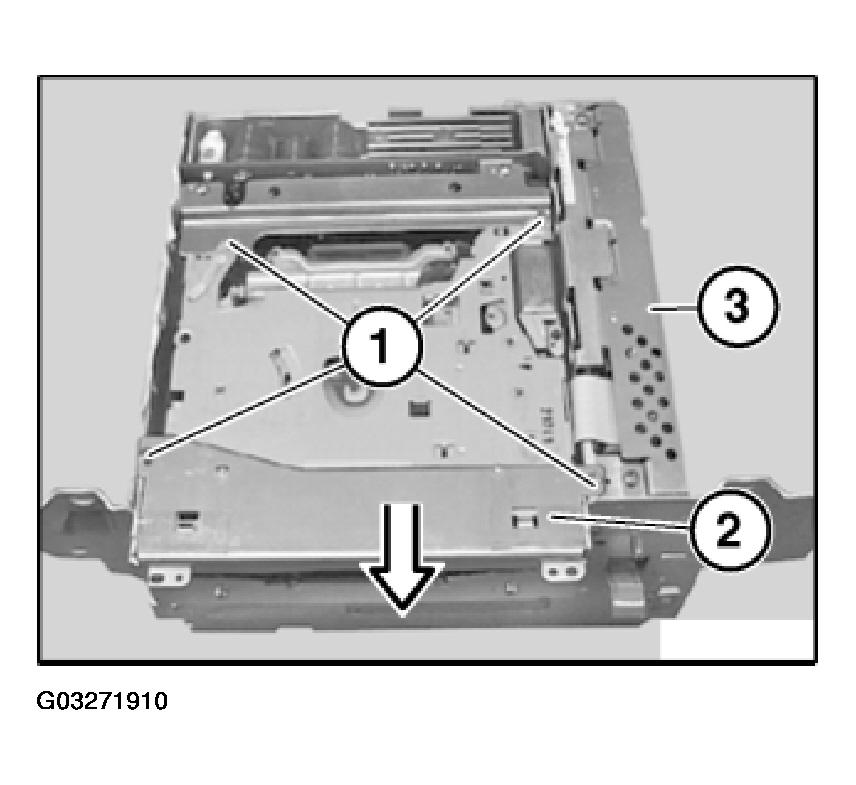

Fig 2: Identifying Car Communication Computer CD Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove CD drive trim (2) in direction of arrow from CD drive for Car Communication Computer (3).

Installation:

Ensure correct routing of cables.

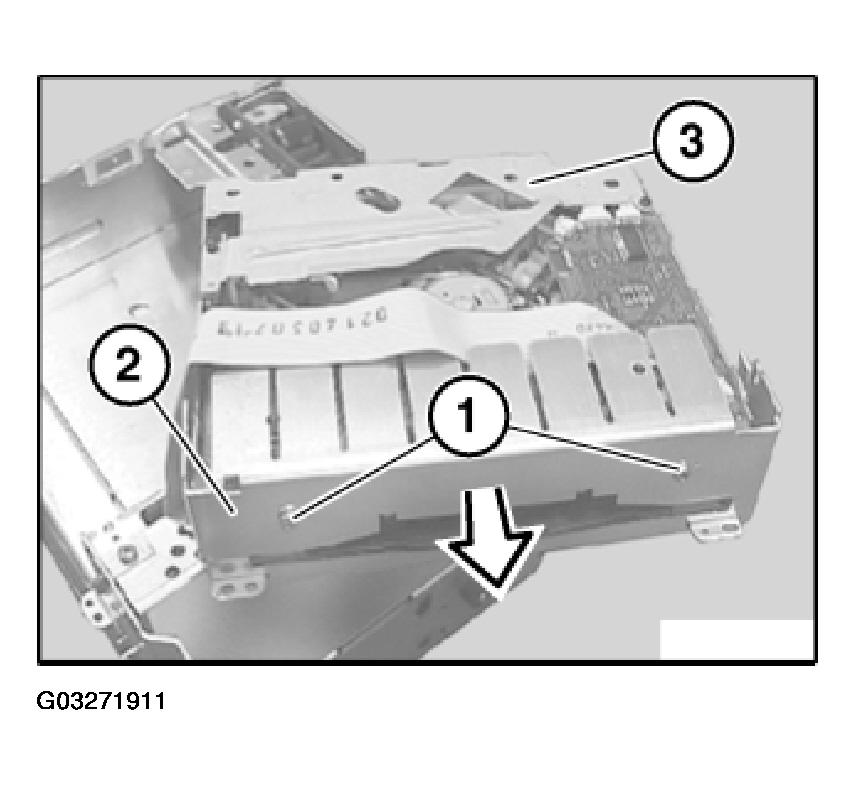

Fig 3: Locating CD Drive Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and (2) in direction of arrow and remove CD drive for Car Communication Computer (3).

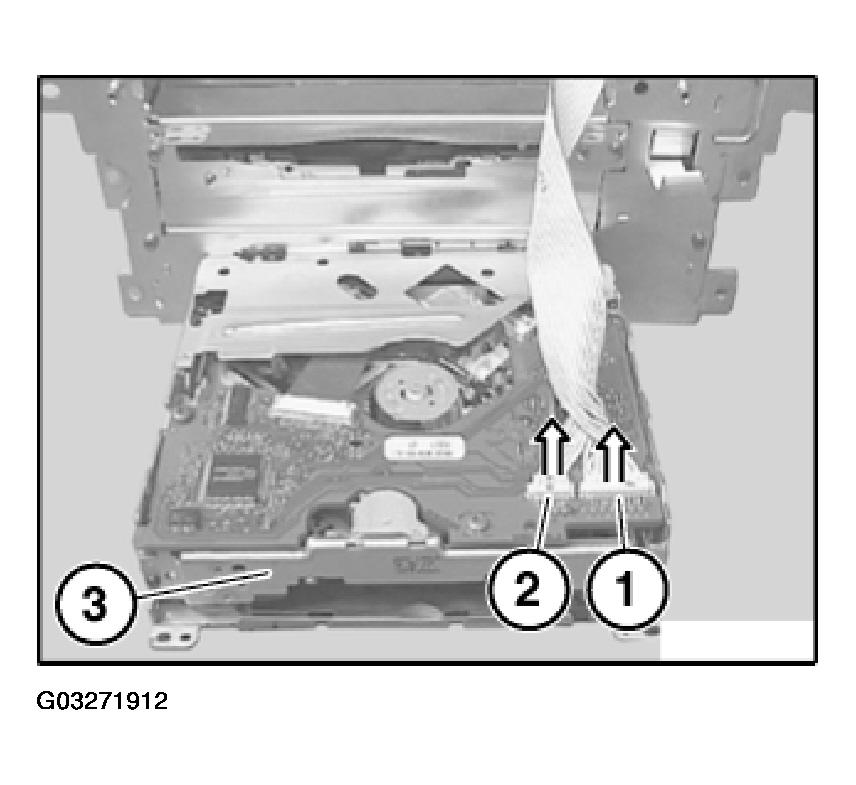

Fig 4: View Of Plug Connector For CD Drive

Courtesy of BMW OF NORTH AMERICA, INC.
