65 83 550 Removing and installing/replacing fan for Car Communication Computer
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary Preliminary Tasks:
- Remove Car Communication Computer. Refer to 65 83 010 REMOVING AND INSTALLING/REPLACING CAR COMMUNICATION COMPUTER .

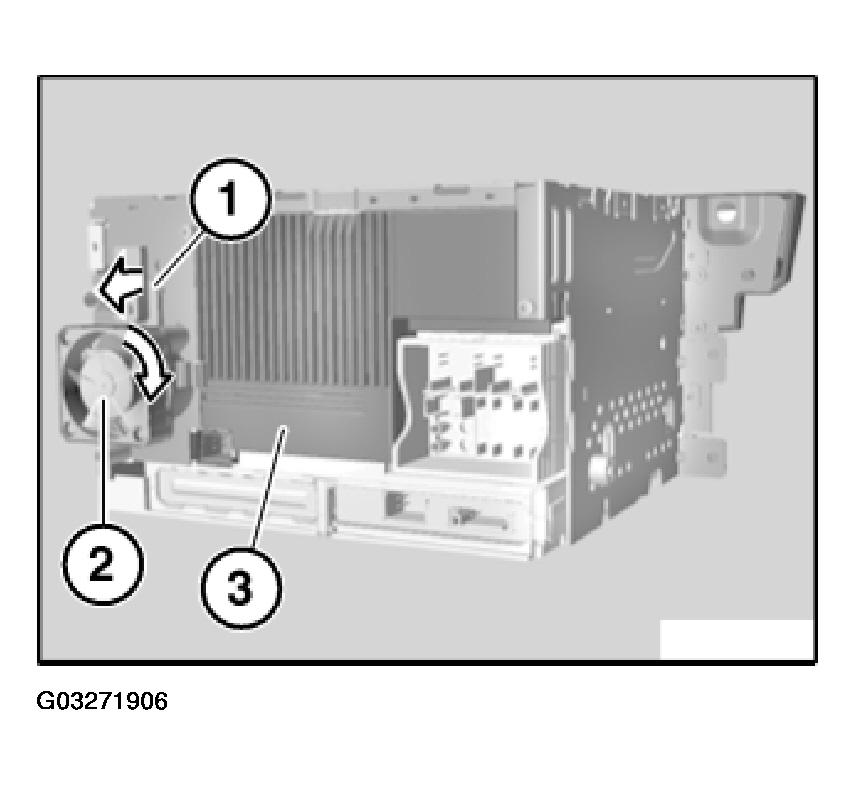

Raise retaining hook (1) and turn fan for Car Communication Computer (2) in direction of arrow.
Remove fan for Car Communication Computer (2) from Car Communication Computer (3).
