65 75 071 Removing and installing (replacing) module for passenger compartment sensor

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For special tools, refer to MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 341

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

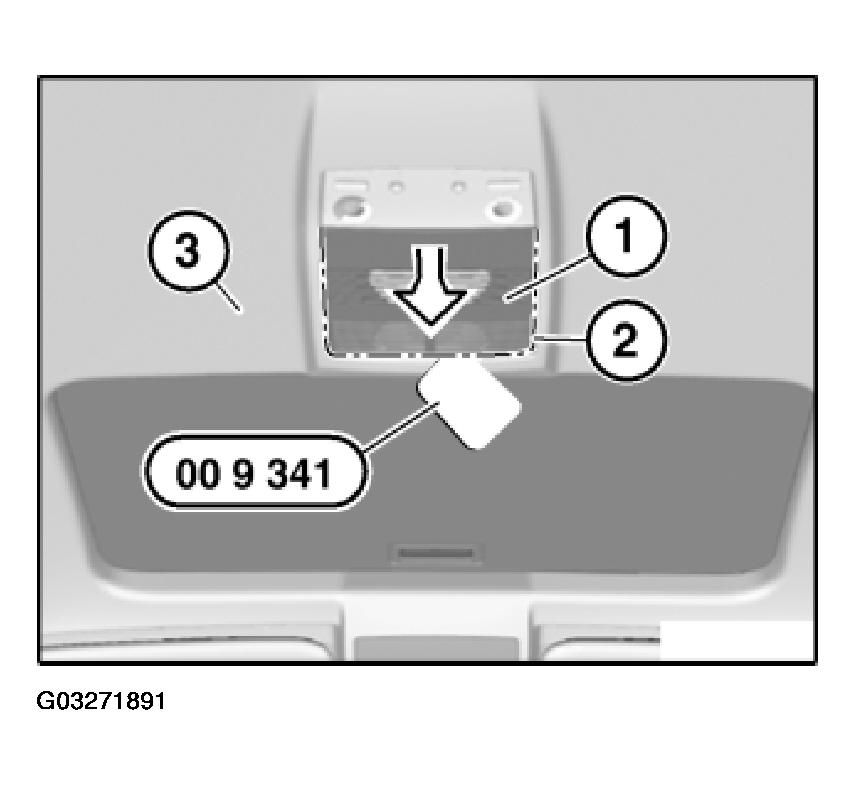

Lever out trim (1) in area (2) with special tool 00 9 341 and remove from moulded rooflining (3).

Unlock associated plug connection and disconnect.

Fig 1: Removing Trim Using Disassembly Tool

Courtesy of BMW OF NORTH AMERICA, INC.

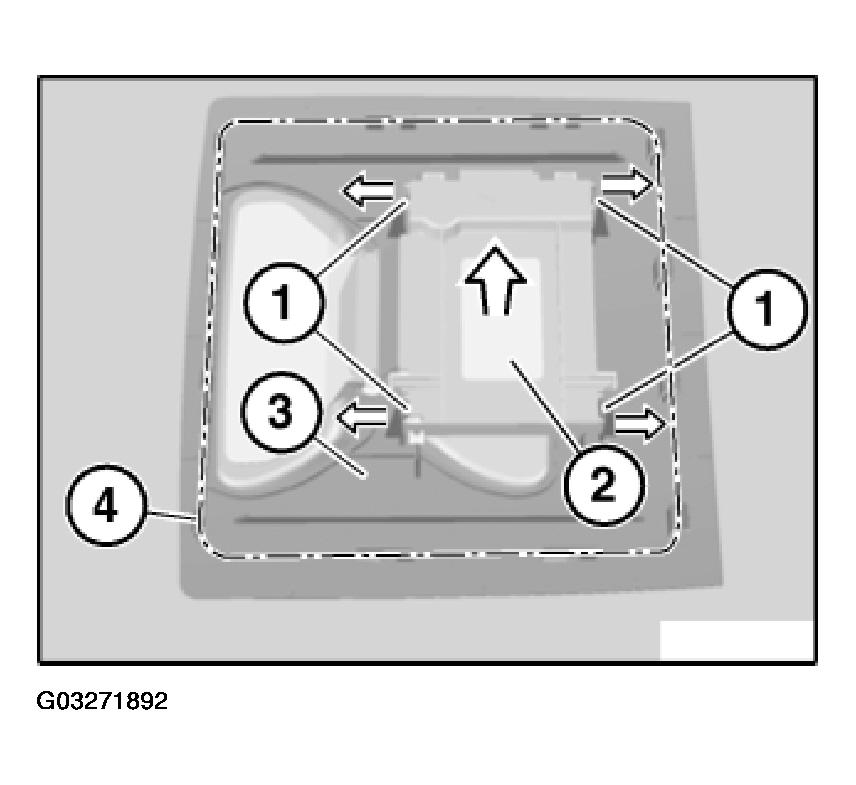

Open retaining lugs (1) in direction of arrow and remove module for passenger compartment sensor (2) from trim (3).

Installation:

Retaining hooks in area (4) must not be damaged.

Fig 2: View Of Module For Passenger Compartment Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
