65 77 560 Removing and installing/replacing control electronics for passenger seat occupancy detector

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Move seat into most upward position.

NOTE: Seat shown removed for purposes of clarity.

Unlock plug connections (1) and disconnect.

Unlock catch (2) and remove control electronics for passenger seat occupancy detector (3) in direction of arrow from seat frame (4).

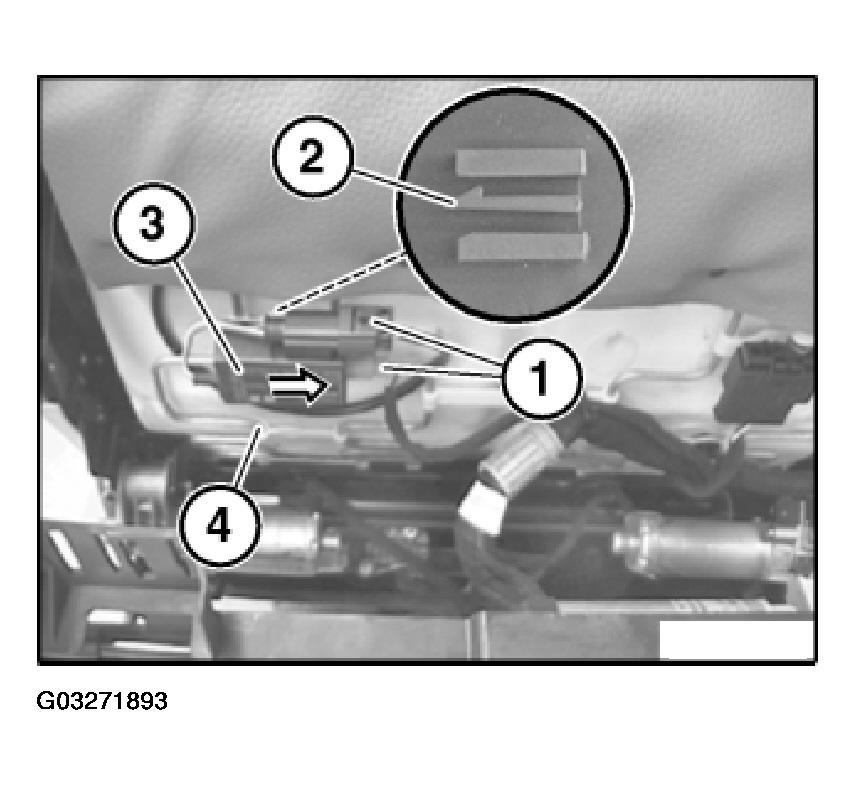

Fig 1: View Of Passenger Seat Occupancy Detector Control Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hook (1) of control electronics for passenger seat occupancy detector (2) must not be damaged.

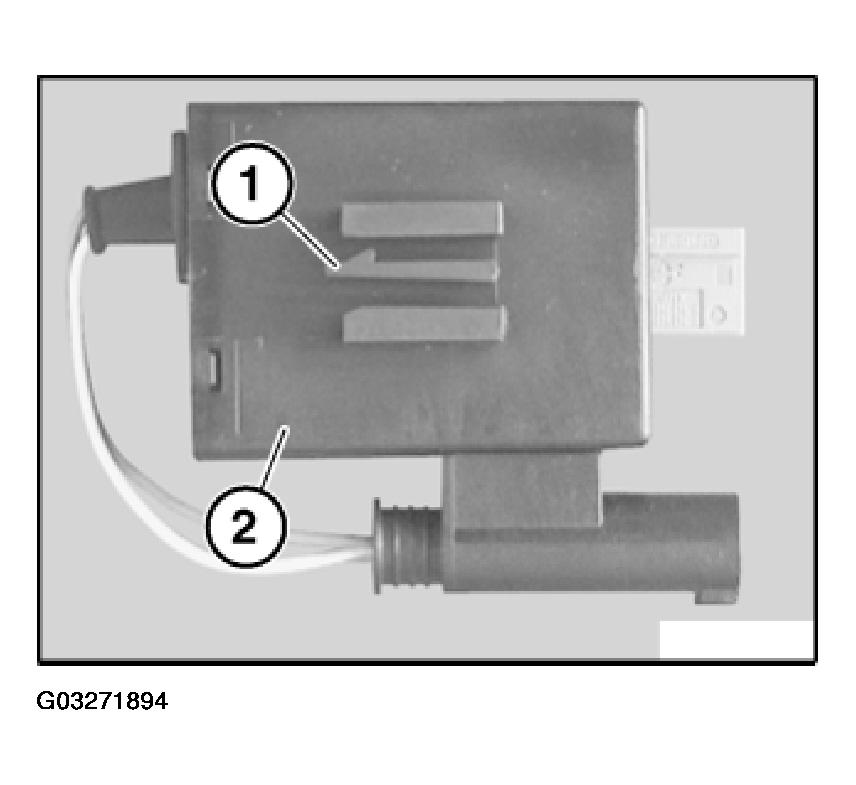

Fig 2: Identifying Control Electronics Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.
