32 41... Instructions for removing and installing ear clips

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

32 1 260

Note:

The work steps are show on assorted components.

Ear clip must always be replaced.

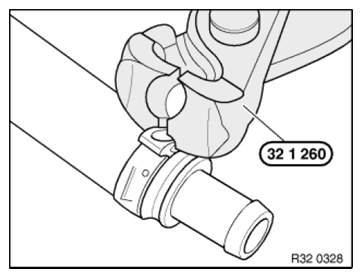

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

Fig 1: Cutting Ear Clamp With Special Tool (32 1 260)

G08527828

Courtesy of BMW OF NORTH AMERICA, INC.

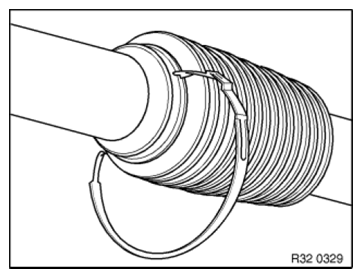

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

Fig 2: Identifying Ear Clip

G08527829

Courtesy of BMW OF NORTH AMERICA, INC.

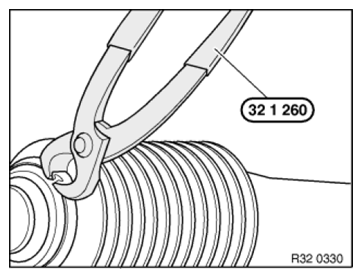

Attach hook fastener and press ear together with special tool 32 1 260 .

Fig 3: Pressing Lock Hook And Ear With Special Tool (32 1 260)

G08527830

Courtesy of BMW OF NORTH AMERICA, INC.

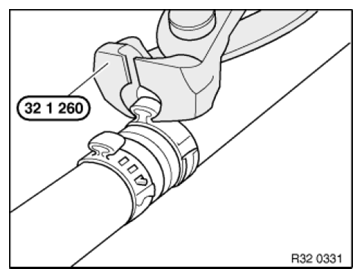

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

Fig 4: Cutting Side Edge With Special Tool (32 1 260)

G08527831

Courtesy of BMW OF NORTH AMERICA, INC.

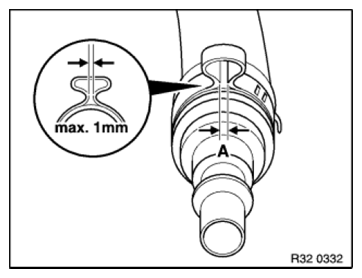

Warning

Gap (A) max. 1 mm!

Fig 5: Identifying Ear Clip Gap Dimensions

G08527832

Courtesy of BMW OF NORTH AMERICA, INC.
