32 41 100 Removing and installing/replacing belt pulley on vane pump for hydraulic steering
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carry out preliminary work as described in the document "REPLACING DRIVE BELT
".

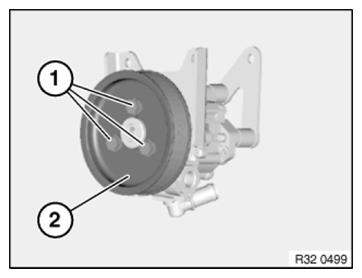

Slacken screws (1)
Relieve tension on DRIVE BELT and remove from belt pulley (2).
Unscrew bolts (1) and remove belt pulley (2).
Installation note:
Lettering on belt pulley (2) must point forwards.
Replace microencapsulated screws.
Tightening torque 32 41 2AZ .
