61-4384 Line

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0494078 614384 Line Minimum set: Measuring and testing equipment MP

NOTE: (Measuring cable set) 2/4 mm system, cable length: 200 mm [Released]

Storage Location

S 205

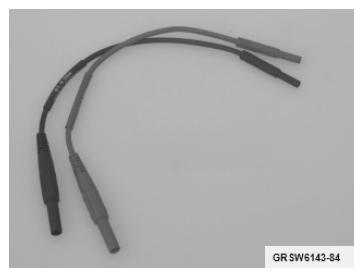

Fig 1: Identifying Line (0494078)
G08522215Courtesy of BMW OF NORTH AMERICA, INC.
