61-0328 Insertion aid

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0495678 610328 Insertion aid MP

NOTE: For inserting contacts (2.8 - 4.8 mm) in housing [Released]

Storage Location

M22 x 205

SI number

02 05 06 (294)

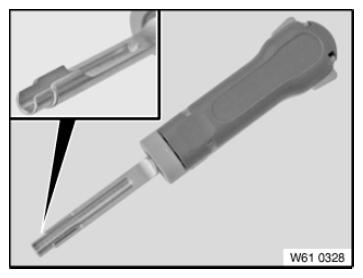

Fig 1: Identifying Insertion Aid (0495678)
G08522212Courtesy of BMW OF NORTH AMERICA, INC.
