61-0210 Die-plate

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0495327 610210 Die-plate MP

NOTE: (Matrix LSK 8) (crimping insert set for load current contact 8) [released]

Storage Location

M22 x 204

SI number

02 02 05 (194)

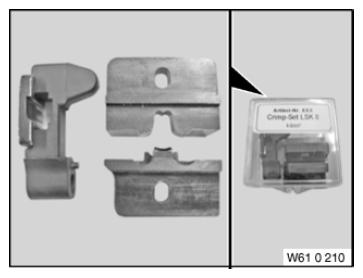

Fig 1: Identifying Die-Plate (0495327)
G08522195Courtesy of BMW OF NORTH AMERICA, INC.
