33-5127 Shaped part

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0496795 335127 Shaped part Minimum set: Mechanical tools MW

NOTE: For driving output shaft into rear axle final drive. [Released]

SI number

01 28 09 (600)

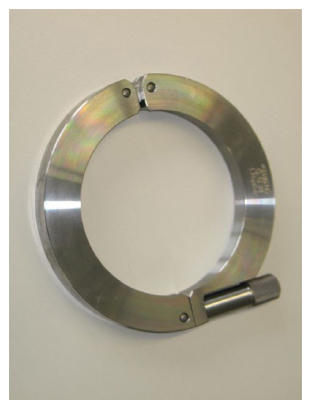

Fig 1: Identifying Shaped Part (0496795)
G08521925Courtesy of BMW OF NORTH AMERICA, INC.
