33-2208 Nut

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0496071 332208 Nut Minimum set: Mechanical tools MW

NOTE: (Nut with thrust bearing) Model series: E30, E31, E32, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, RR1 [Released]

Storage Location

B8

C8

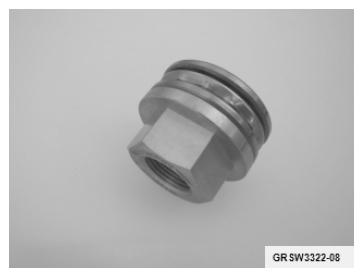

Fig 1: Identifying Nut (0496071)
G08521892Courtesy of BMW OF NORTH AMERICA, INC.
