33-2204 Spindle

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0496067 332204 Spindle Minimum set: Mechanical tools MW

NOTE: (Spindle M20x1.5 / length 180 mm) For drawing in. Series: E30 [Released]

Storage Location

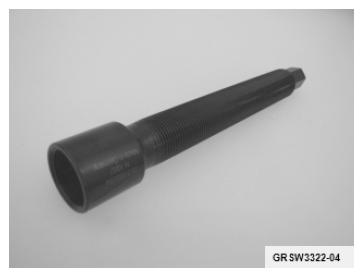

Fig 1: Identifying Spindle (0496067)

Courtesy of BMW OF NORTH AMERICA, INC.
