64 22 138 Removing and installing/replacing right fresh-air grille
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - E60 .
Special Tools Required:
- 64 1 020
Necessary Preliminary Tasks:
- Remove decorative strip on instrument panel on right. Refer to 51 45 380 REMOVING AND INSTALLING (REPLACING) RIGHT DECORATIVE STRIP ON INSTRUMENT PANEL .

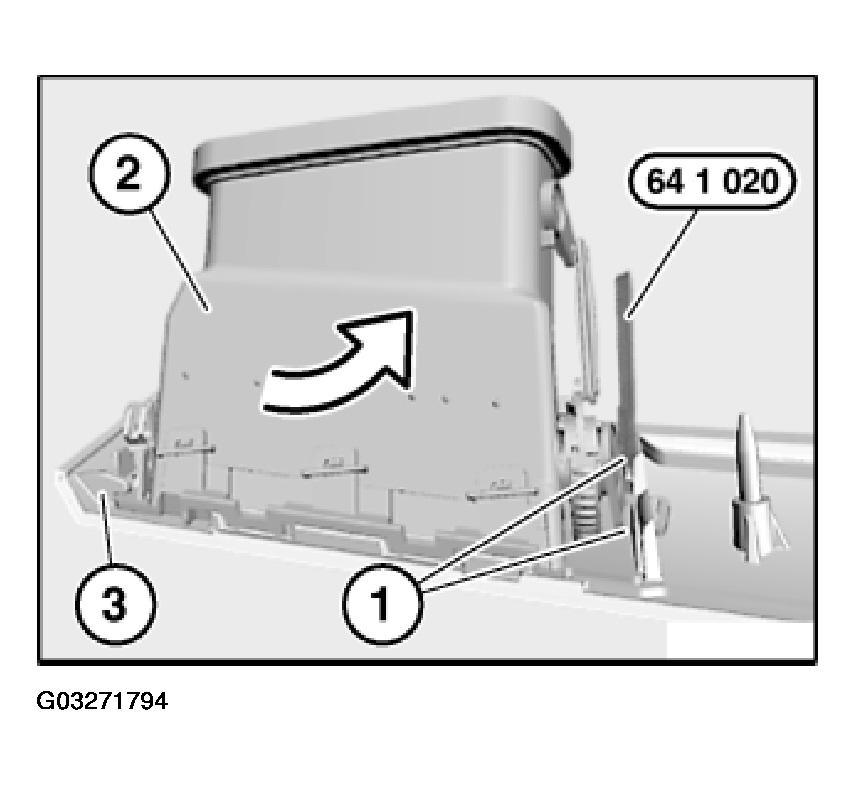

Lever out catches (1) with special tool 64 1 020 and unclip right fresh-air grill (2) from decorative strip on instrument panel on right (3).
