64 11 992 Removing and installing/replacing solar sensor
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove speaker trim from trim for instrument panel at top. Refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

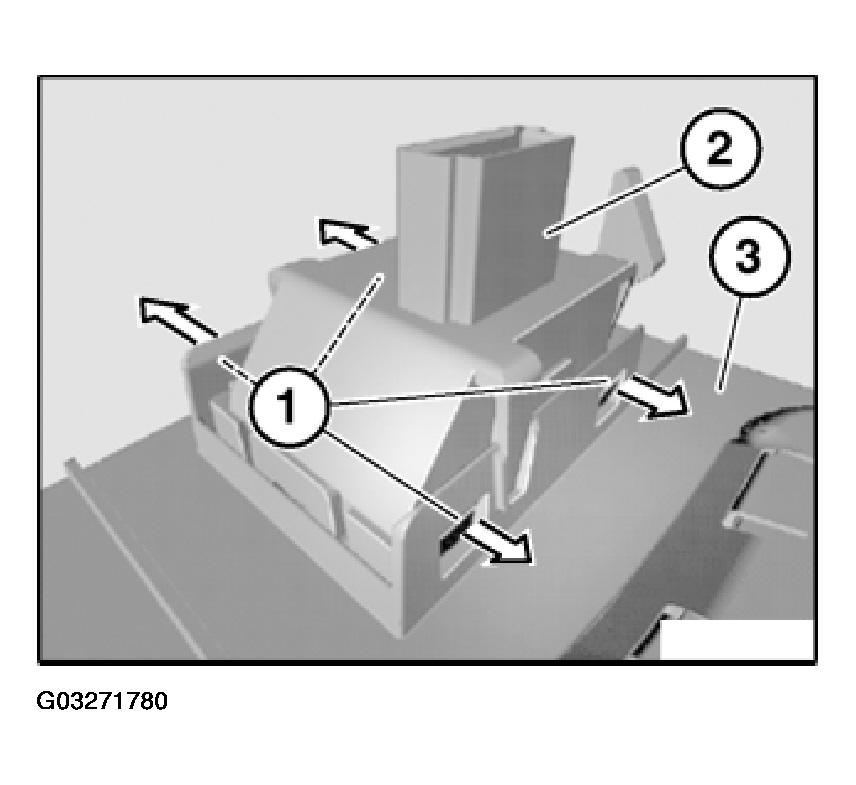

Unlock catches (1) in direction of arrow and remove solar sensor (2) from speaker trim (3).
Installation:
Catches (1) on speaker trim (3) must not be damaged.
Make sure solar sensor (2) is correctly seated in speaker trim (3).
