64 11 991 Removing and installing/replacing sensor for automatic recirculated air control
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

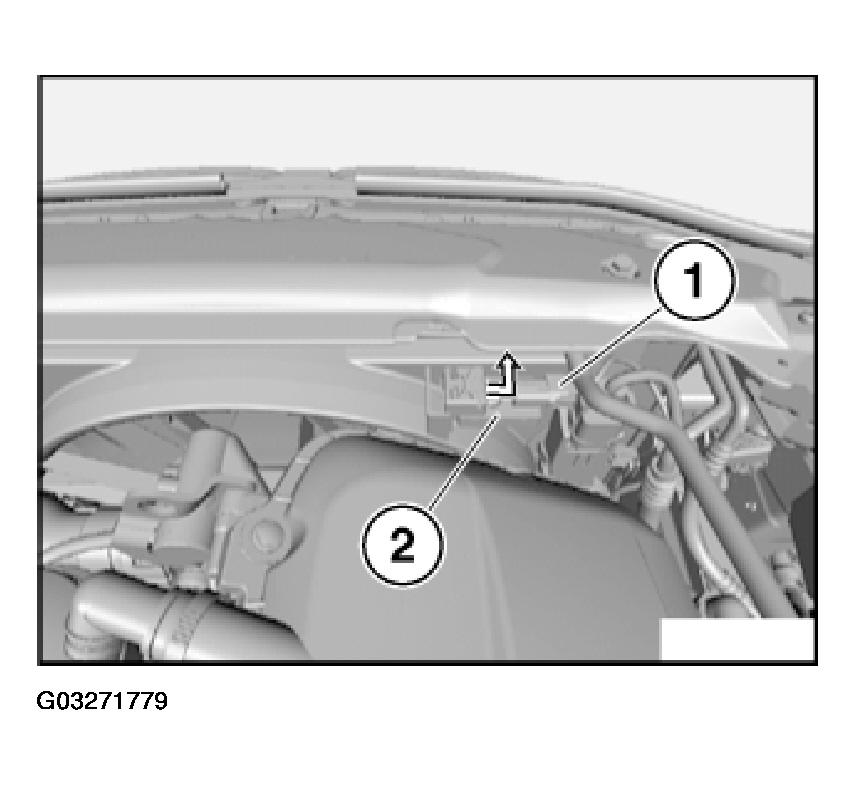

Unfasten plug connection (1) and disconnect.
Feed out sensor for automatic recirculated air control (2) in direction of arrow and remove.
Installation:
Make sure sensor for automatic recirculated air control (2) is correctly seated.
