64 11 912 Removing and installing/replacing temperature sensor for heating unit
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove on-board monitor. Refer to 65 82 050 REMOVING AND INSTALLING (REPLACING) ON-BOARD MONITOR .

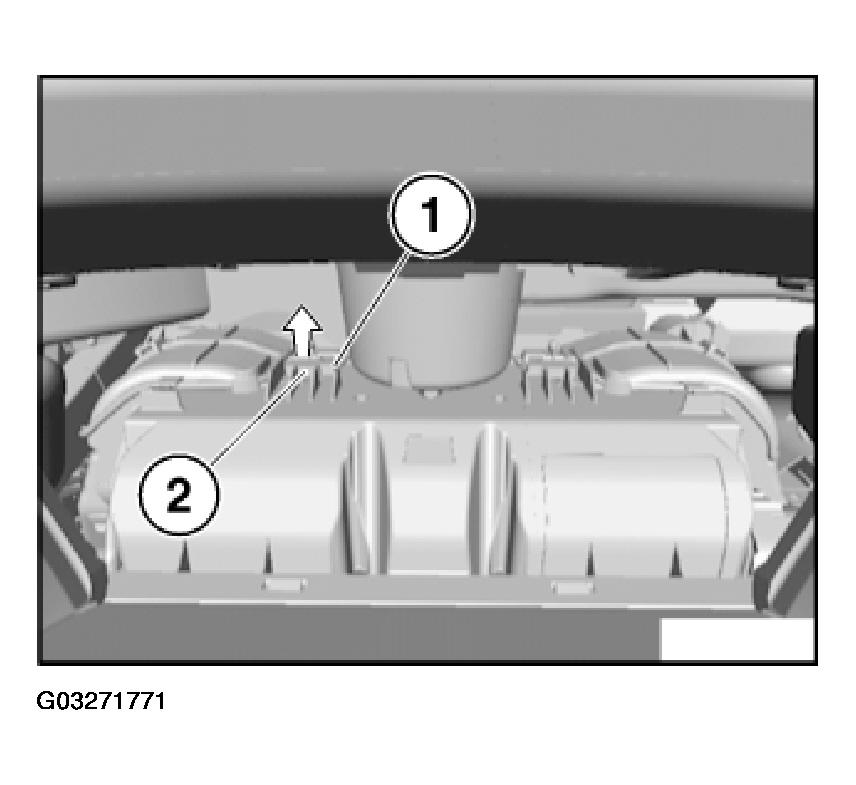

Unfasten plug connection (1) and disconnect.
Pull out temperature sensor for heating unit (2) in direction of arrow.
Installation:
Make sure temperature sensor for heating unit (2) is correctly seated.
