64 11 869 Replacing servodrive of stratification flap
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove right glovebox with housing. Refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING .

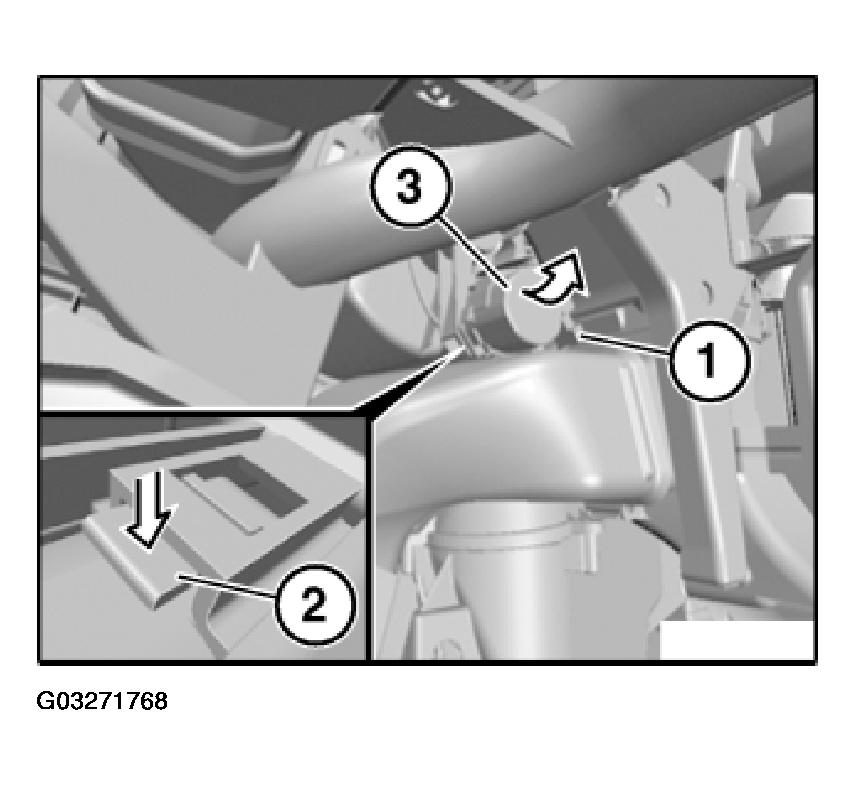

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for stratification flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". Refer to 64 11 ... INSTALLING SERVODRIVE .
Servodrive for stratification flap (3) must snap audibly into place.
