64 11 840 Replacing servodrive for left footwell flap
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove trim for instrument panel. Refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

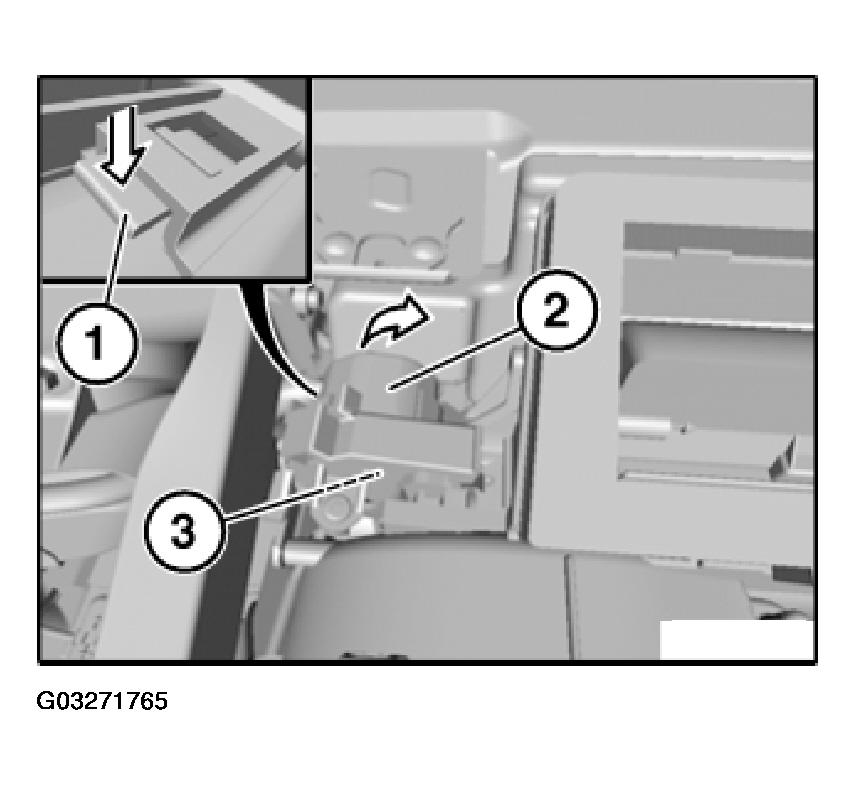

Press lock (1) and unclip servodrive for left footwell flap (2) in direction of arrow.
Unfasten plug connection (3) and disconnect.
Installation:
Follow repair instruction "Installing servodrive". Refer to 64 11 ... INSTALLING SERVODRIVE .
