64 11 832 Replacing servodrive for right ventilation flap
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove airbag module on passenger side.

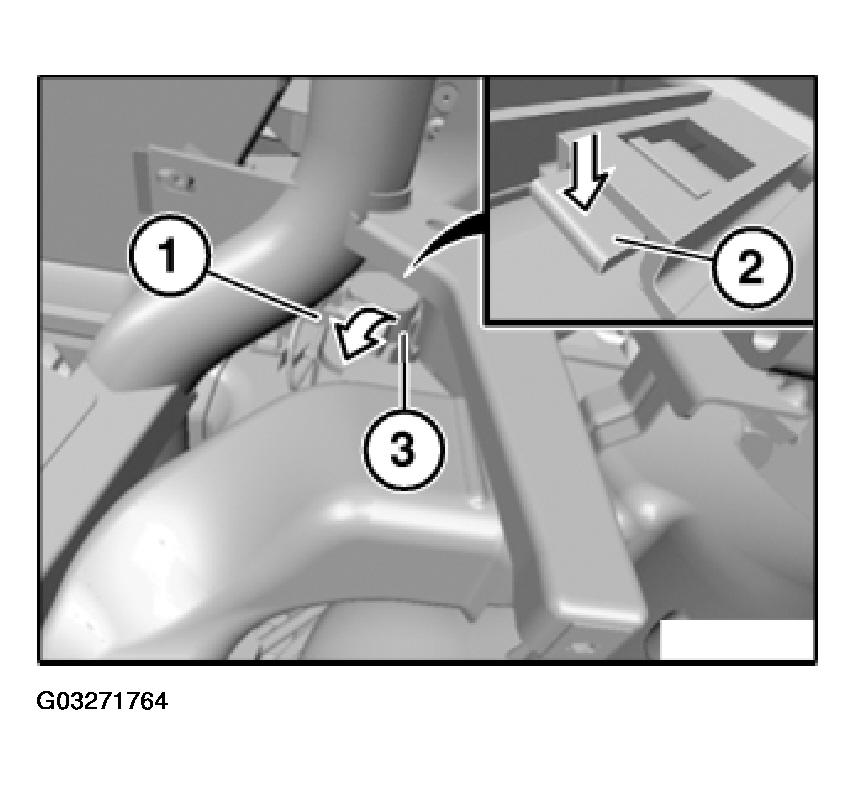

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for right ventilation flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". Refer to 64 11 ... INSTALLING SERVODRIVE .
Servodrive for right ventilation flap (3) must snap audibly into place.
