64 11 830 Replacing servodrive for left ventilation flap
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Remove air distributor in footwell and heating duct in rear compartment on left. Refer to 64 11 943 REPLACING EVAPORATOR TEMPERATURE SENSOR .

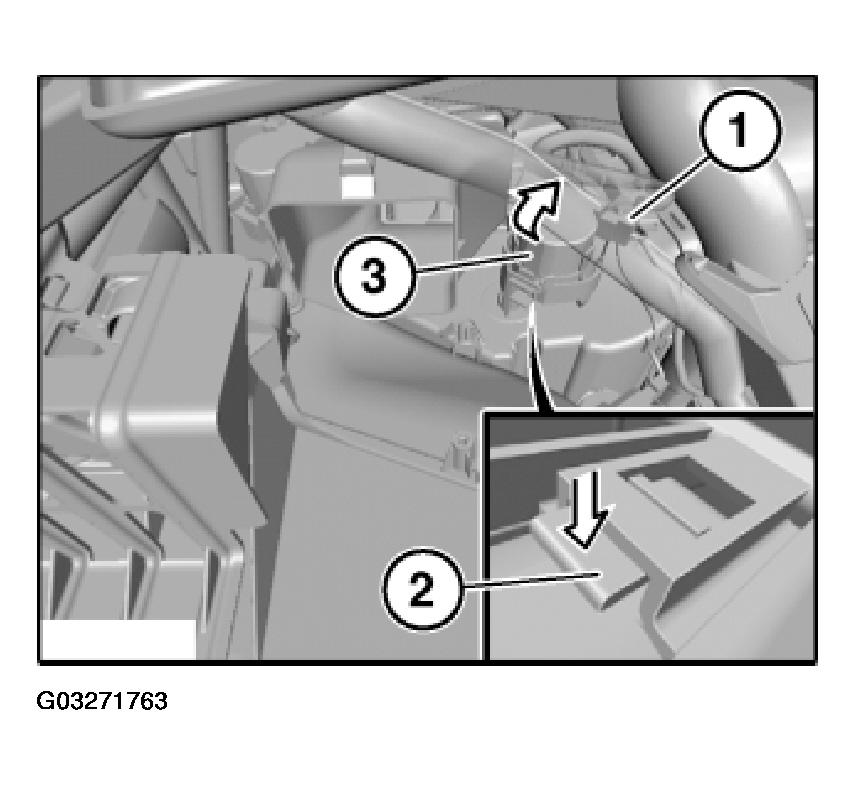

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for left ventilation flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". Refer to 64 11 ... INSTALLING SERVODRIVE .
Servodrive for left ventilation flap (3) must snap audibly into place.
