64 11 208 Replacing heater core
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove heater. Refer to 64 11 206 REMOVING AND INSTALLING OR REPLACING HEATER .

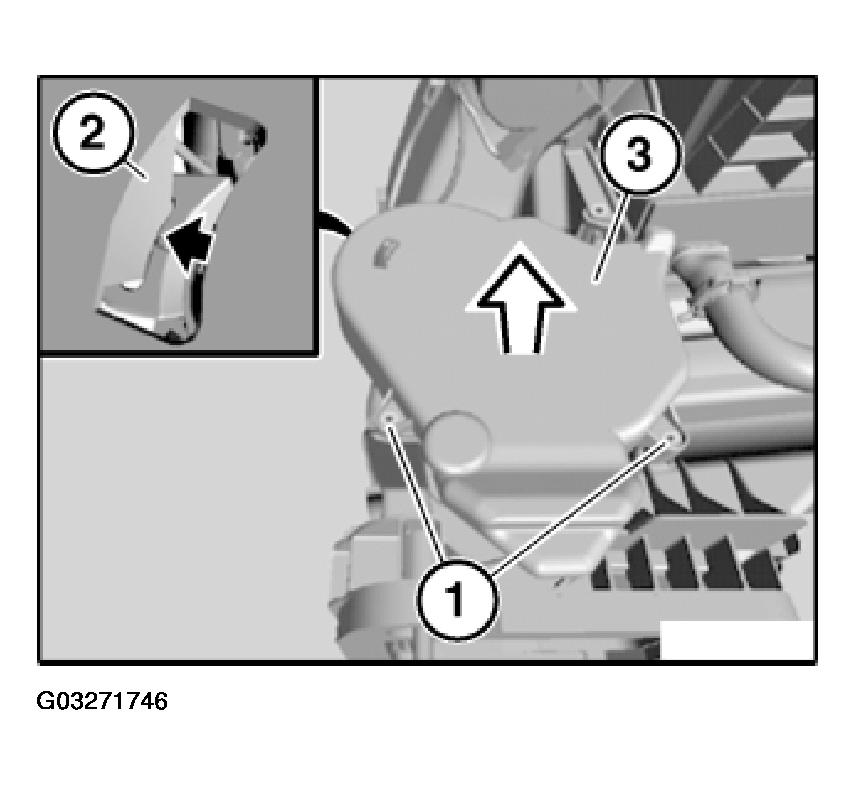

Release screws (1).
Press lock (2) and remove cover (3) in direction of arrow.
Installation:
Ensure cover (3) is correctly seated.

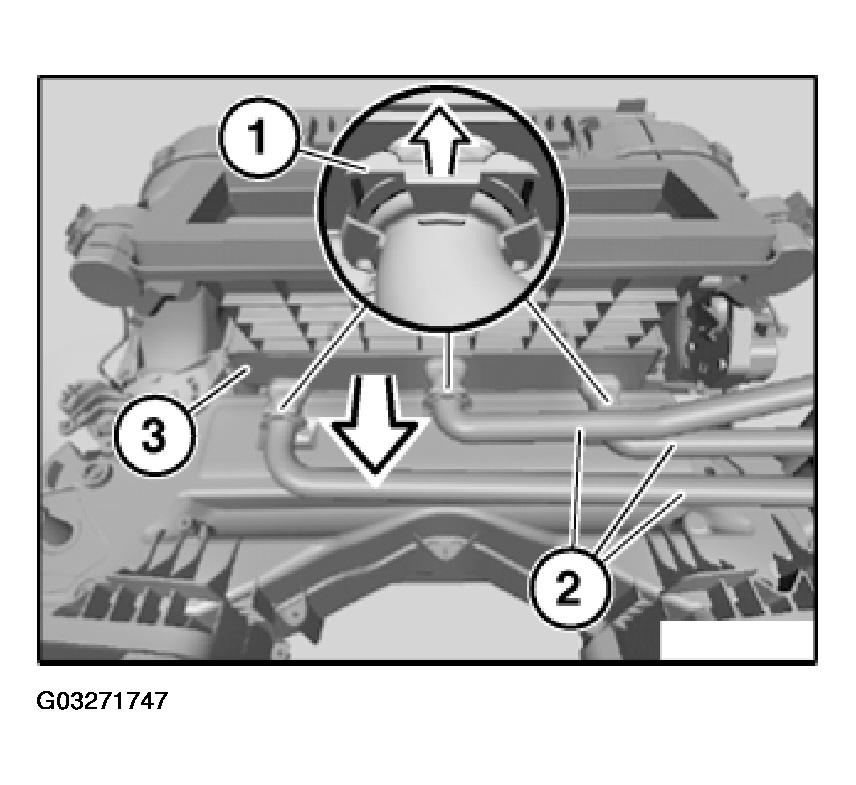

Pull out clips (1) in direction of arrow.
Installation:
Make sure clips (1) are correctly and firmly seated.
Pull pipes (2) out of heater core (3).
Installation:
Replace sealing rings.
Coat sealing rings with antiseize agent.
Make sure sealing rings are correctly seated.
Pull out heater core (3) in direction of arrow.
Installation:
Make sure heater core (3) is correctly seated.
