64 12 600 Removing and installing or replacing fuel pump

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

13 3 010

Necessary Preliminary Tasks:

Remove left underbody paneling. Refer to 51 47 ... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .

Seal off water hoses at fuel pump with special tool 13 3 010.

Fig 1: View Of Water Hose With Hose Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Unfasten plug connection (1) and disconnect.

Release hose clamps (2) and detach fuel hoses.

Unscrew bolt (3).

NOTE: Secure fuel pump (4) against falling out.

Remove fuel pump (4) in direction of arrow.

Installation:

Observe direction of flow of fuel pump (4).

Replacement:

Detach fuel pump (4) from fuel pump holder.

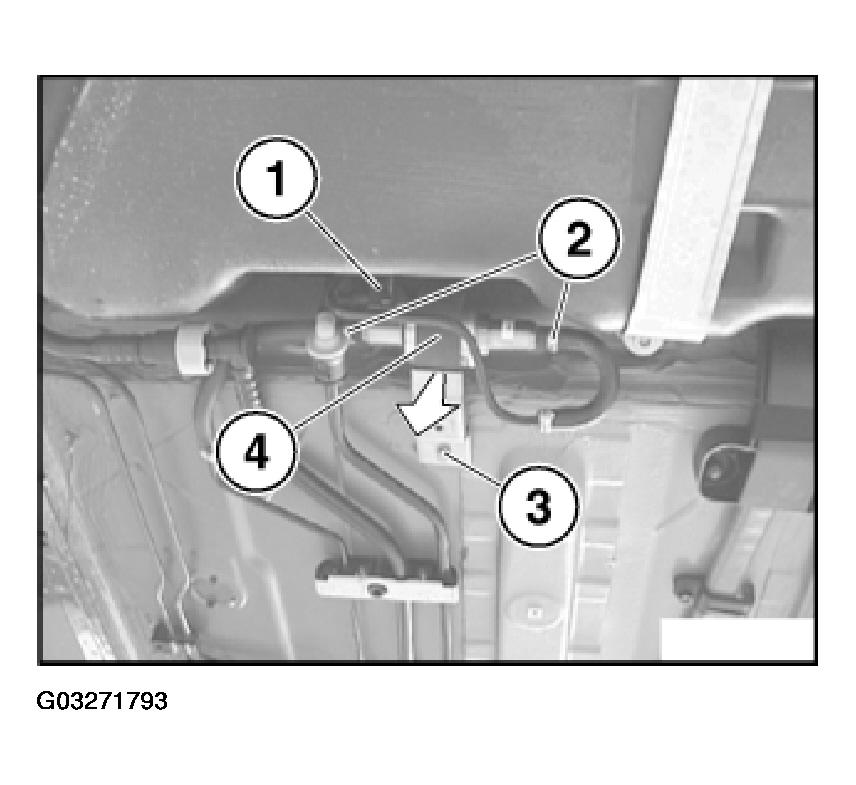

Fig 2: Removing Fuel Pump

Courtesy of BMW OF NORTH AMERICA, INC.
