64 12 590 Removing and installing or replacing muffler
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove left underbody paneling. Refer to 51 47 ... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .

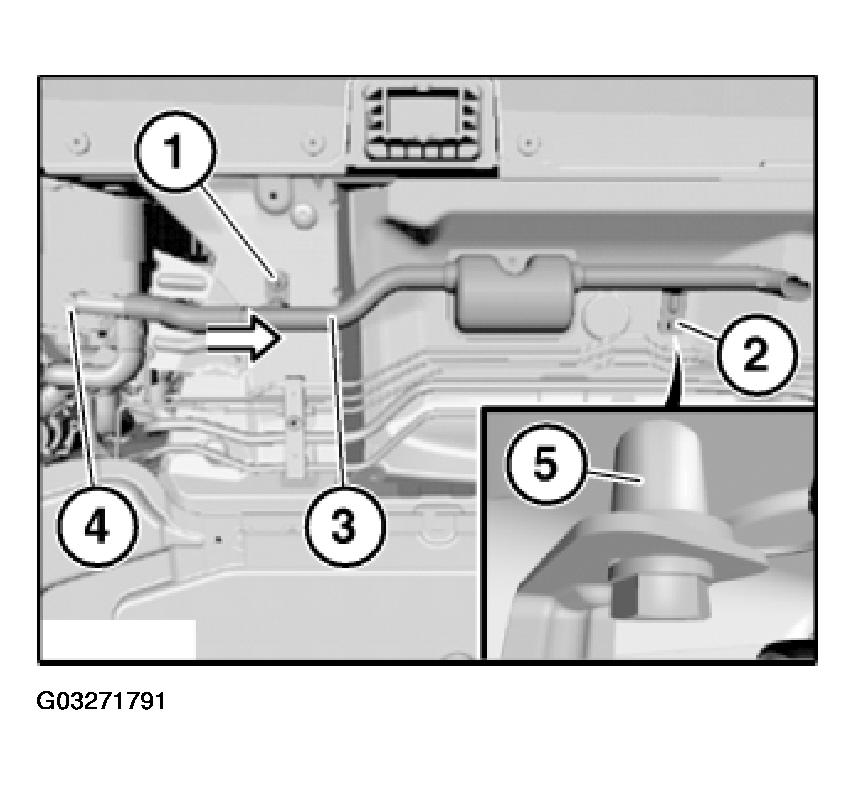

Unscrew nut (1).
Release screw (2).
Withdraw muffler (3) in direction of arrow from exhaust pipe (4).
Installation:
If necessary, replace blind rivet nut (5).
