64 12 525 Replacing complete independent heater

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove complete independent heater. Refer to 64 12 021 REMOVING AND INSTALLING INDEPENDENT/AUXILIARY HEATER .

Detach cable strap (1).

Release spring clip (2).

Detach air intake hose (3).

Loosen screws (4).

Remove holder for independent heater (5).

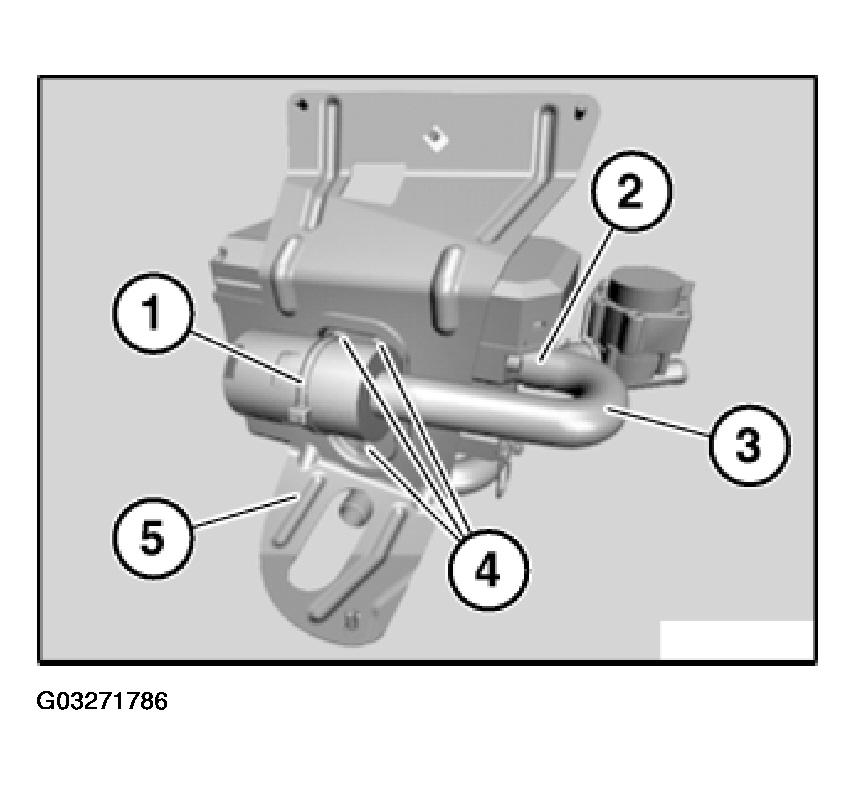

Fig 1: Identifying Independent Heater Components

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock cover (1) and remove in direction of arrow.

Unlock and disconnect plug connection for auxiliary water pump.

Feed cable out of guide.

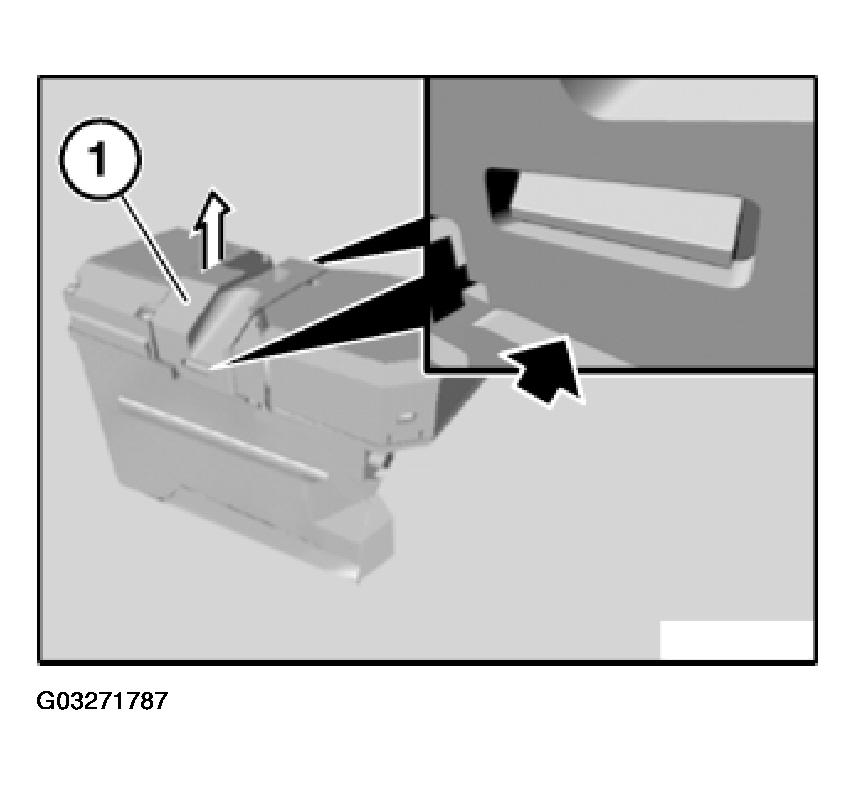

Fig 2: Removing Cover For Auxiliary Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Release spring clip (1).

Detach coolant hose (2) together with auxiliary water pump (3) in direction of arrow.

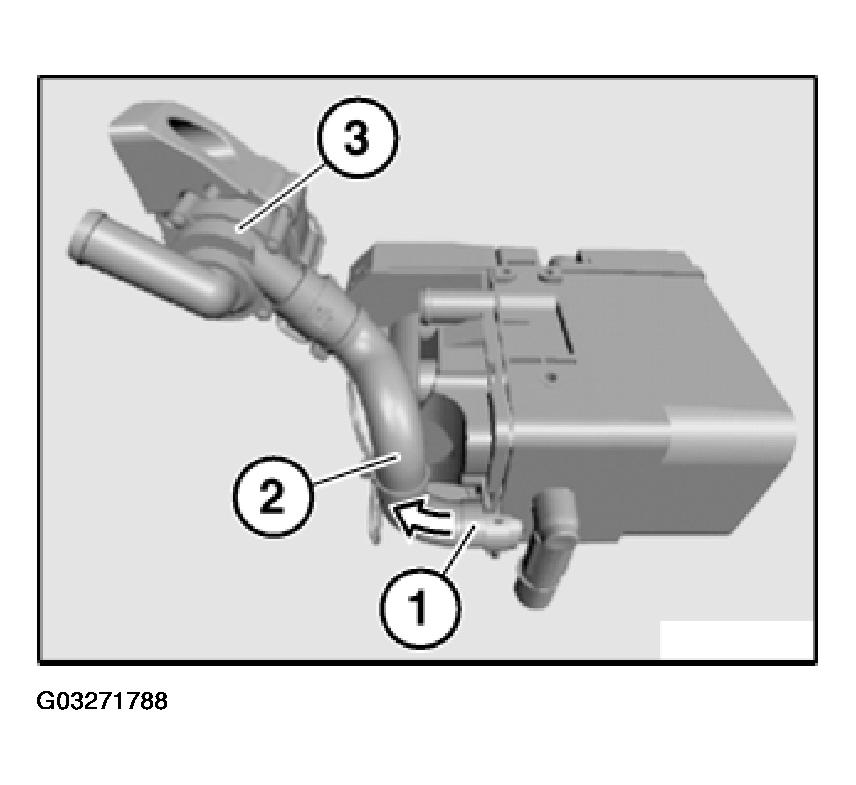

Fig 3: Locating Coolant Hose Spring Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
