63 13 200 Removing and installing/replacing front left or right auxiliary turn signal lamp

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Slide from auxiliary turn signal lamp (1) towards rear and fold in direction of arrow out of front side wall (2).

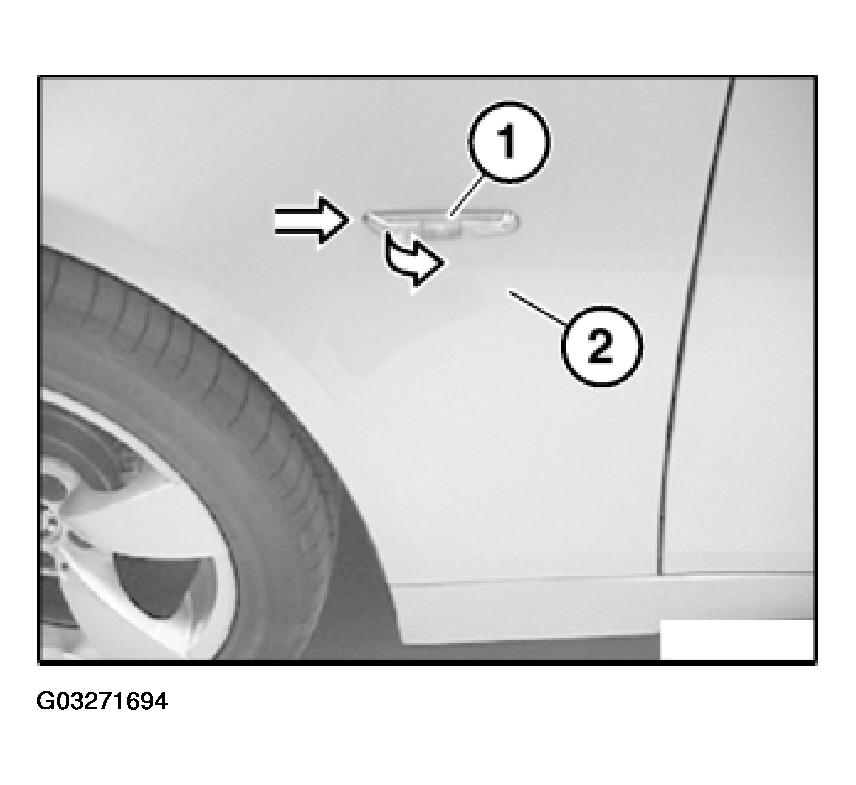

Fig 1: Aligning Auxiliary Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove front auxiliary turn signal lamp (2).

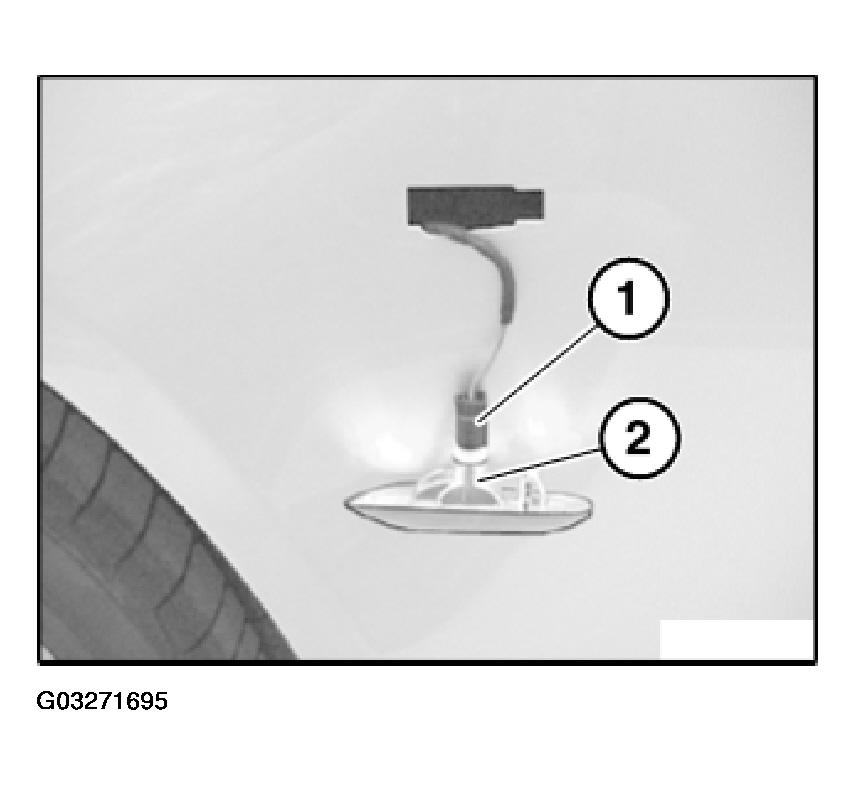

Fig 2: View Of Auxiliary Turn Signal Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, convert bulb.
