63 21 101 Replacing sealing frame for left or right rear light
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear light. Refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT .

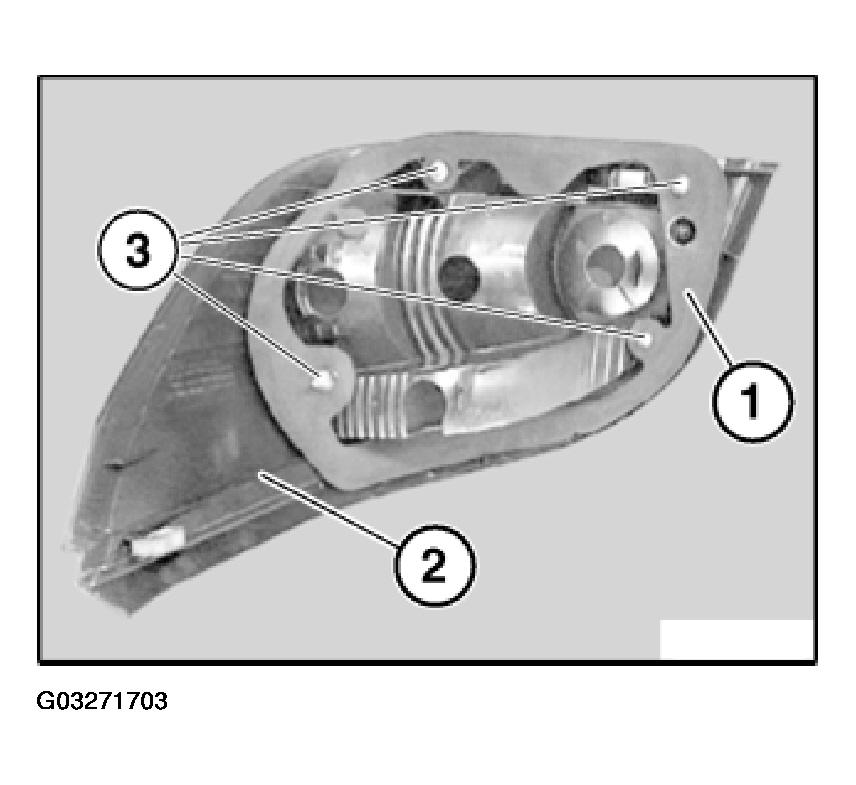

Detach sealing frame for rear light (1) from rear light (2).
Installation:
Sealing frame for rear light (1) is centered via openings for threaded pins (3).
Make sure sealing frame for rear light (1) is correctly bonded all round on rear light (2).
