63 99 495 Replacing LED for left or right door handle/door compartment light

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

For door compartment light:

Lever out cap for door compartment light.

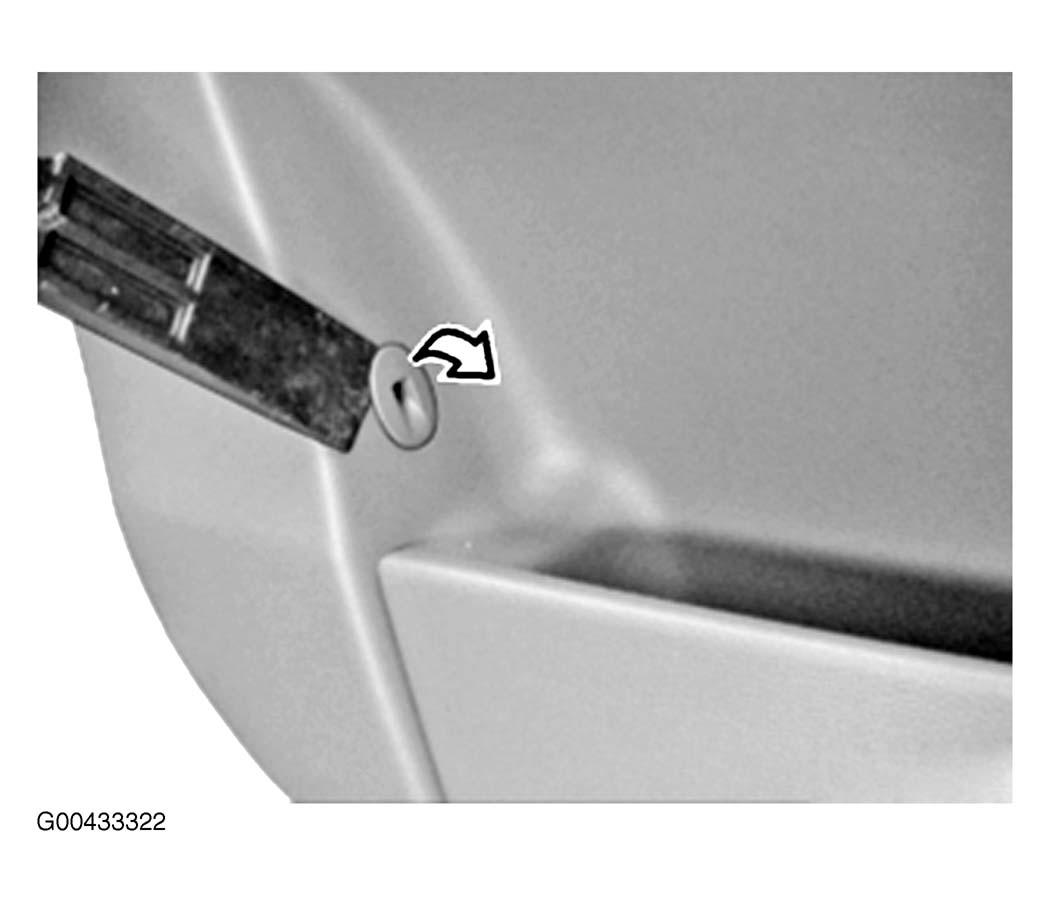

Fig 1: Removing Door Compartment Light Cap

G00433322

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock LED in direction of arrow and detach cap.

Remove sheathing from wiring harness.

Disconnect cables.

Connect cables of new wiring harness with butt connectors and heat-shrink sleeves.

Insulate wiring harness with insulating tape.

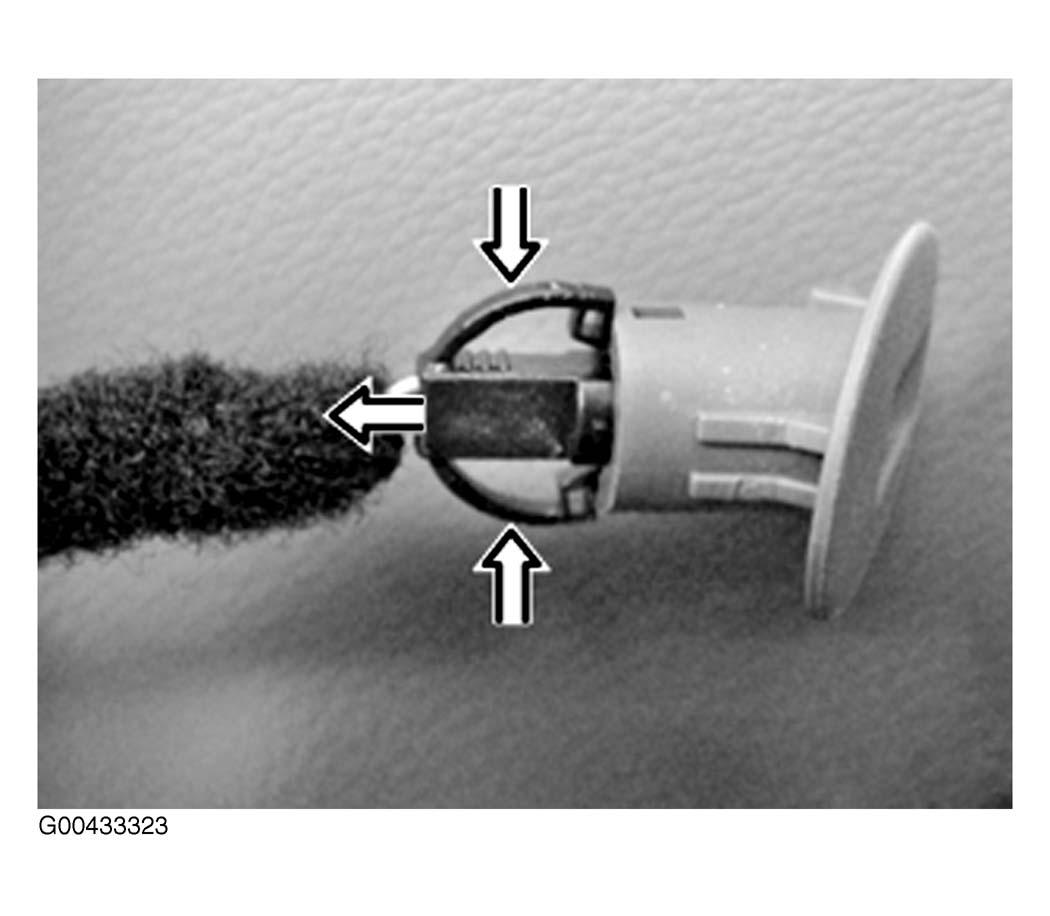

Fig 2: Locating Door Compartment LED

G00433323

Courtesy of BMW OF NORTH AMERICA, INC.

For door handle light:

Lever out cap for door compartment light.

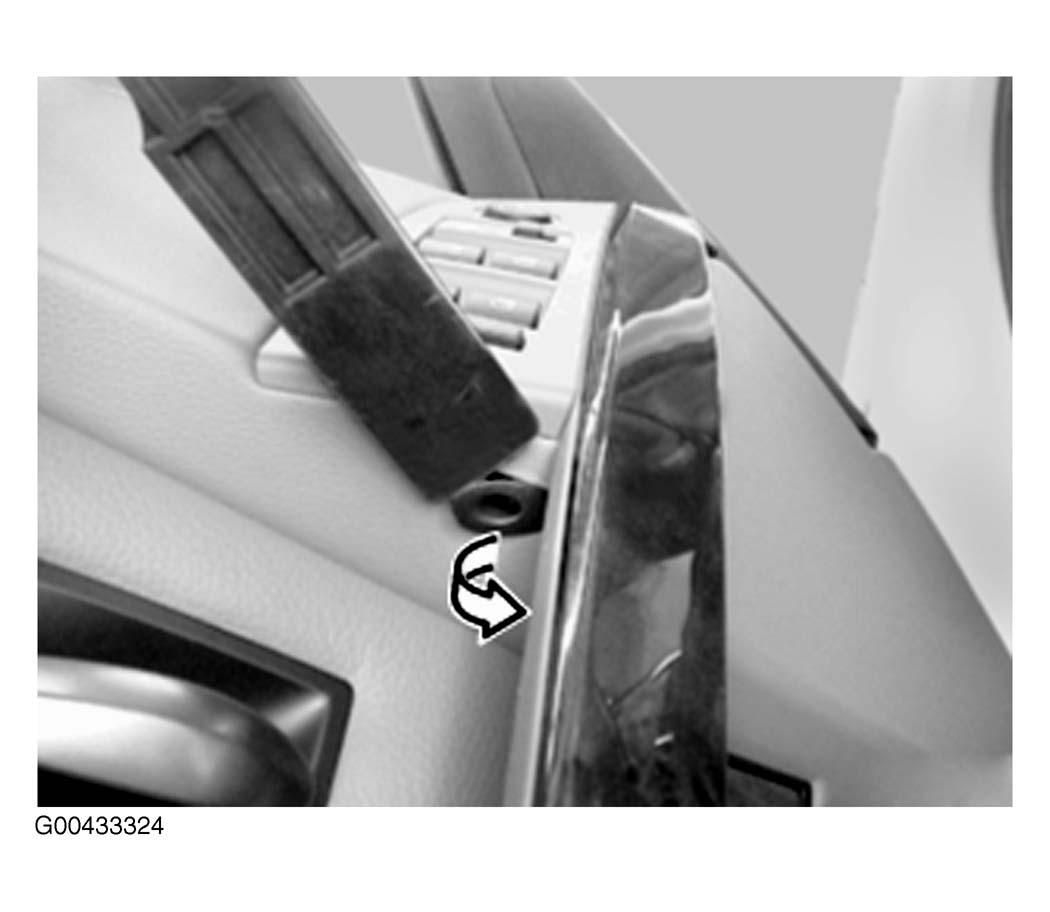

Fig 3: View Of Door Handle Light Cap

G00433324

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock LED in direction of arrow and detach cap.

Remove sheathing from wiring harness.

Connect cables of new wiring harness with butt connectors and heat-shrink sleeves.

Insulate wiring harness with insulating tape.

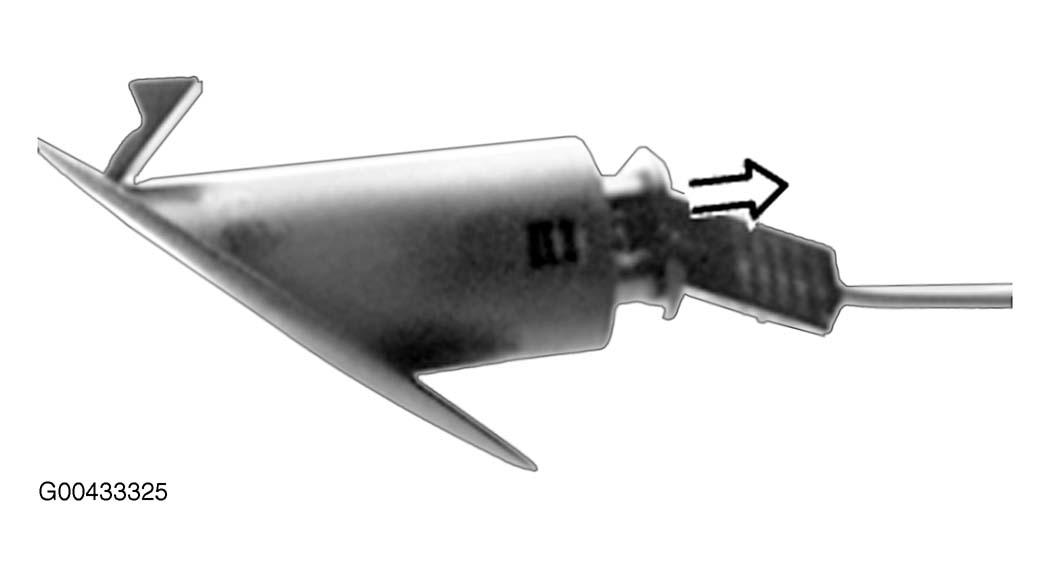

Fig 4: Removing Door Handle LED
