63 99 273 Replacing bulb for turn indicator, front left

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Turn bulb holder (1) approx. 30° counterclockwise.

Feed bulb holder (1) out of headlight (2).

Remove bulb from bulb holder (1).

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .

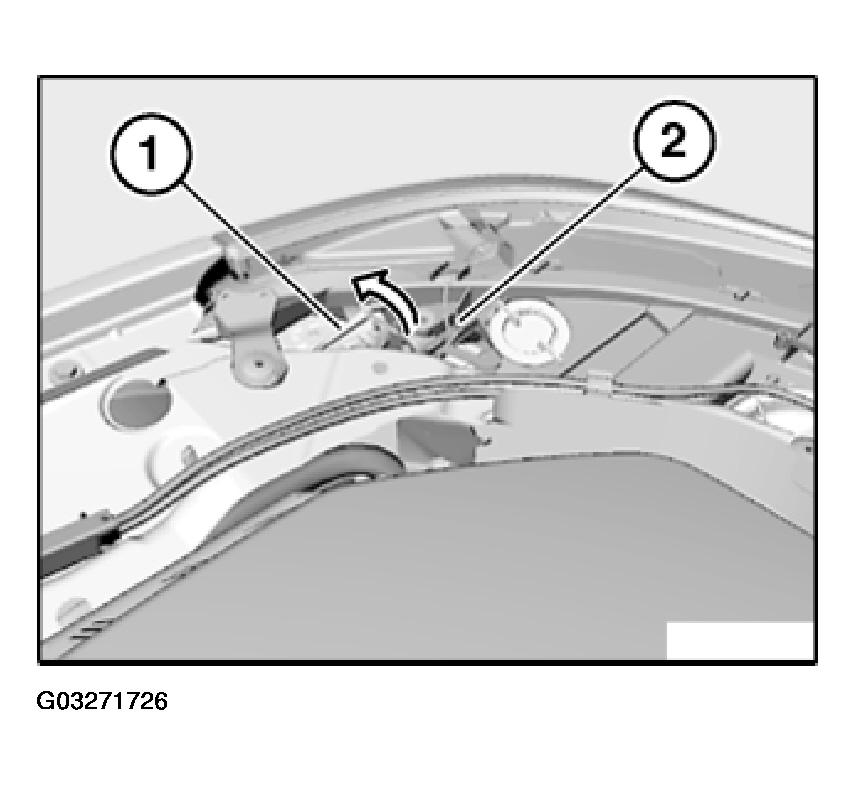

Fig 1: Locating Bulb Holder For Turn Indicator
G03271726Courtesy of BMW OF NORTH AMERICA, INC.
