63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary Preliminary Tasks:

If necessary, remove front underbody protection. Refer to 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION .

Unfasten plug connection (1) and disconnect.

Turn bulb with bulb holder (2) in direction of arrow and remove.

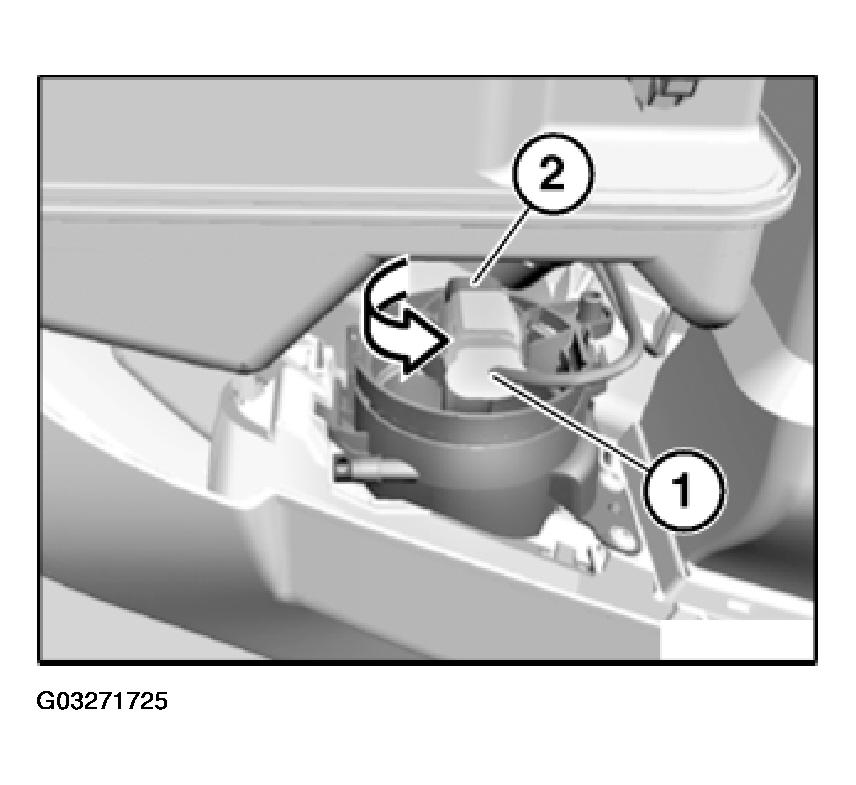

Fig 1: Identifying Fog Lamp Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .
