63 99 132 Replacing bulb for side marker lamp, front left
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Necessary Preliminary Tasks:
- Remove halogen lamp for high-beam headlight. Refer to 63 99 002 REPLACING HALOGEN BULB FOR HIGH-BEAM HEADLIGHT ON LEFT .

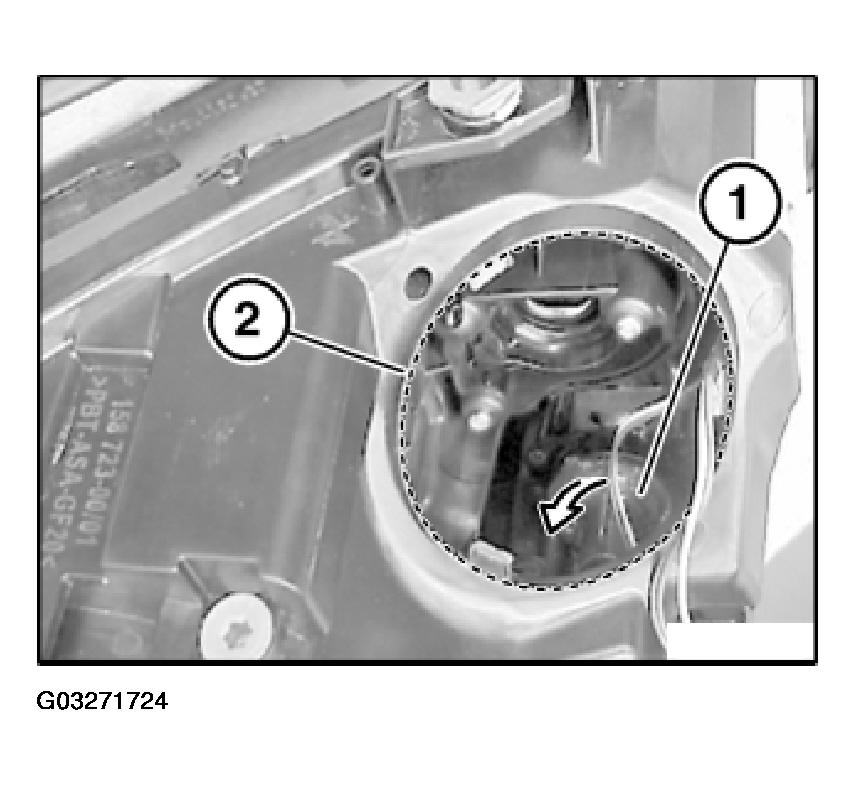

Turn holder with bulb for side marker lamp (1) approx. 30° counterclockwise.
Feed holder with bulb for side marker lamp (1) out of aperture for headlight (2).
Unlock associated plug connection and disconnect.
Installation:
Holder with bulb for side marker lamp (1) must be correctly seated in mounting.
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .
