63 99 076 Replacing lamp for left xenon headlight
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Necessary Preliminary Tasks:
- Remove ignition unit for left xenon headlight. Refer to 63 12 870 REPLACING IGNITION UNIT FOR LEFT XENON HEADLIGHT .

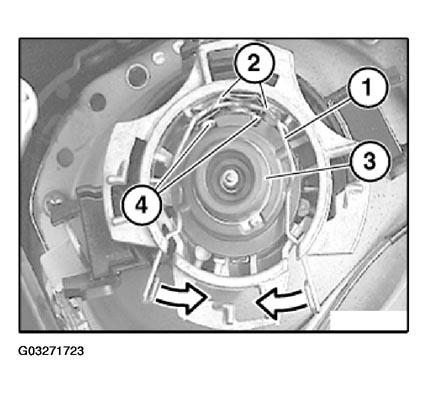

Unlock retaining ring (1).
Installation:
Retaining ring (1) must be located under holder (2).
Remove lamp for xenon headlight (3).
Installation:
Insert lamp for xenon headlight (3) exactly in mounting (4).
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .
