63 99 072 Replacing halogen bulb for headlight on left

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

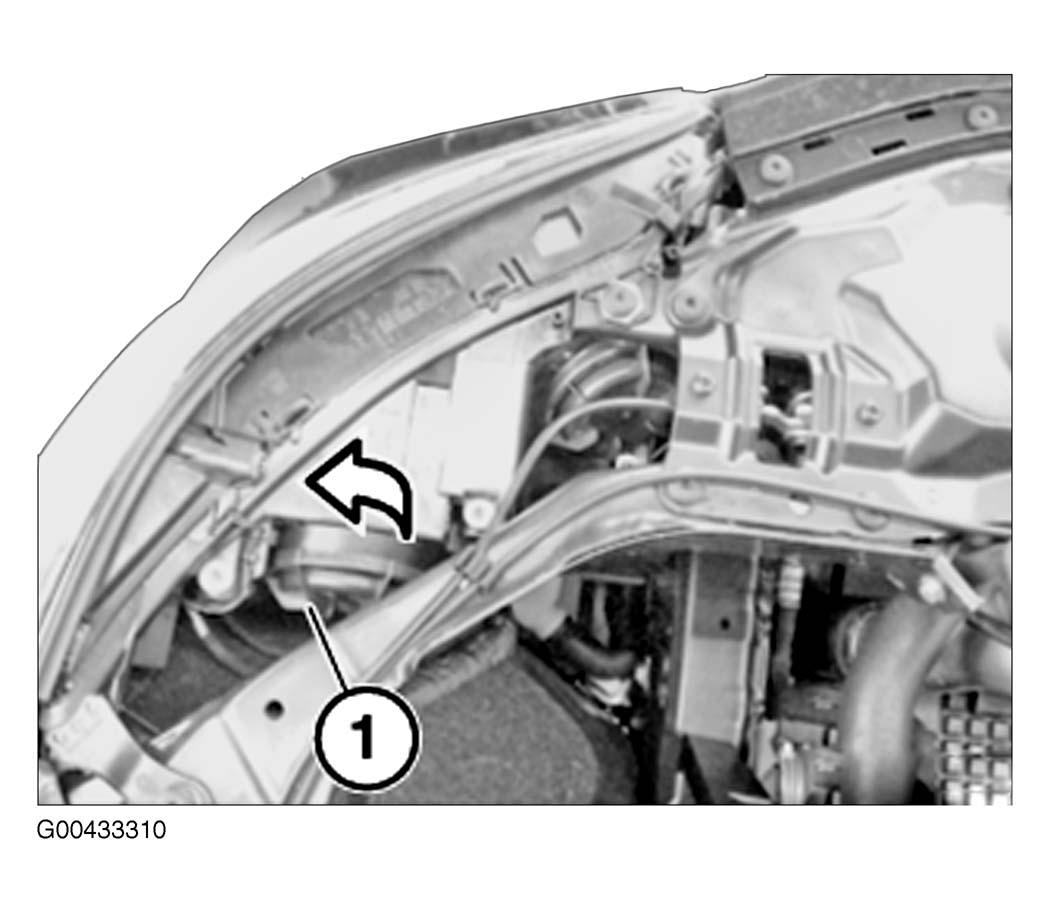

Turn protective cap (1) approx. 30° in direction of arrow and remove from headlight.

Installation:

Make sure cover (1) is correctly seated on headlight.

Fig 1: Identifying Headlight Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

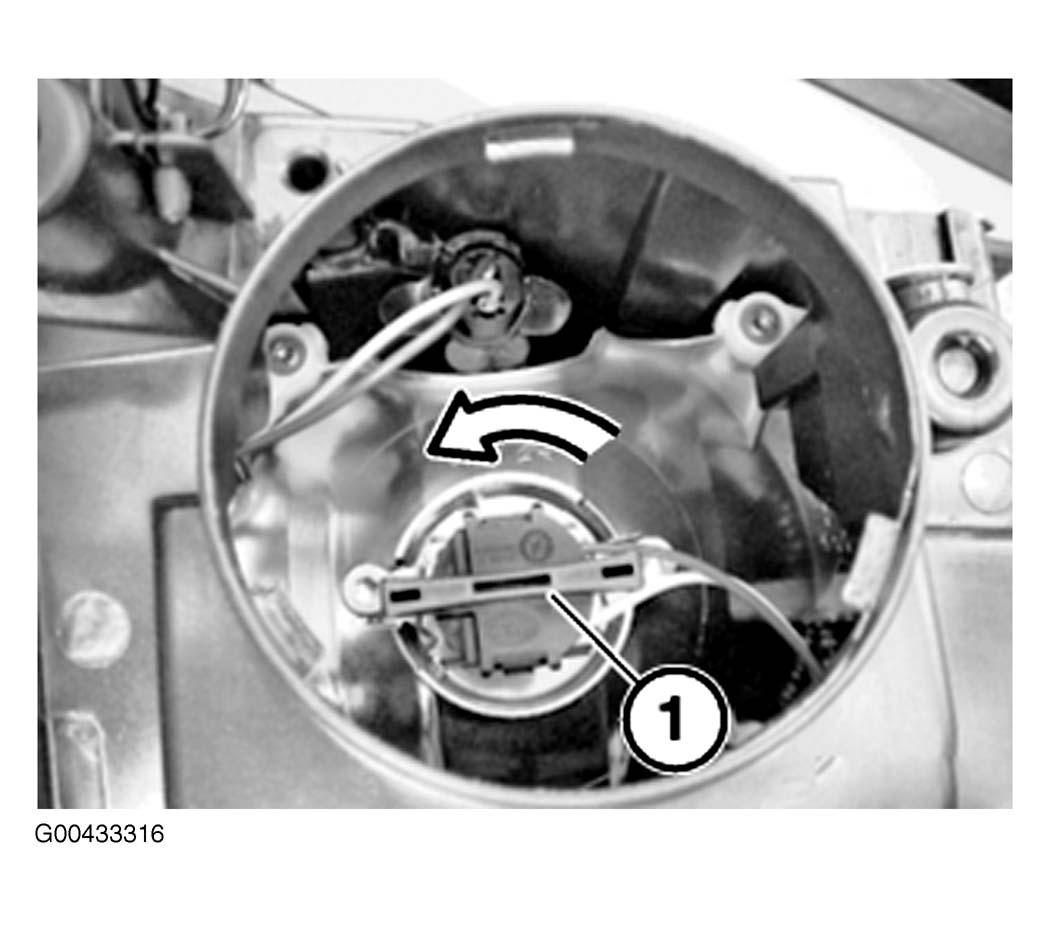

Turn bulb holder (1) in direction of arrow and feed together with bulb out of headlight.

Disengage spring wire clip (2).

Remove bulb (3) towards rear from headlight (4).

Installation:

Make sure retaining tabs are correctly seated.

Fig 2: Removing Halogen Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

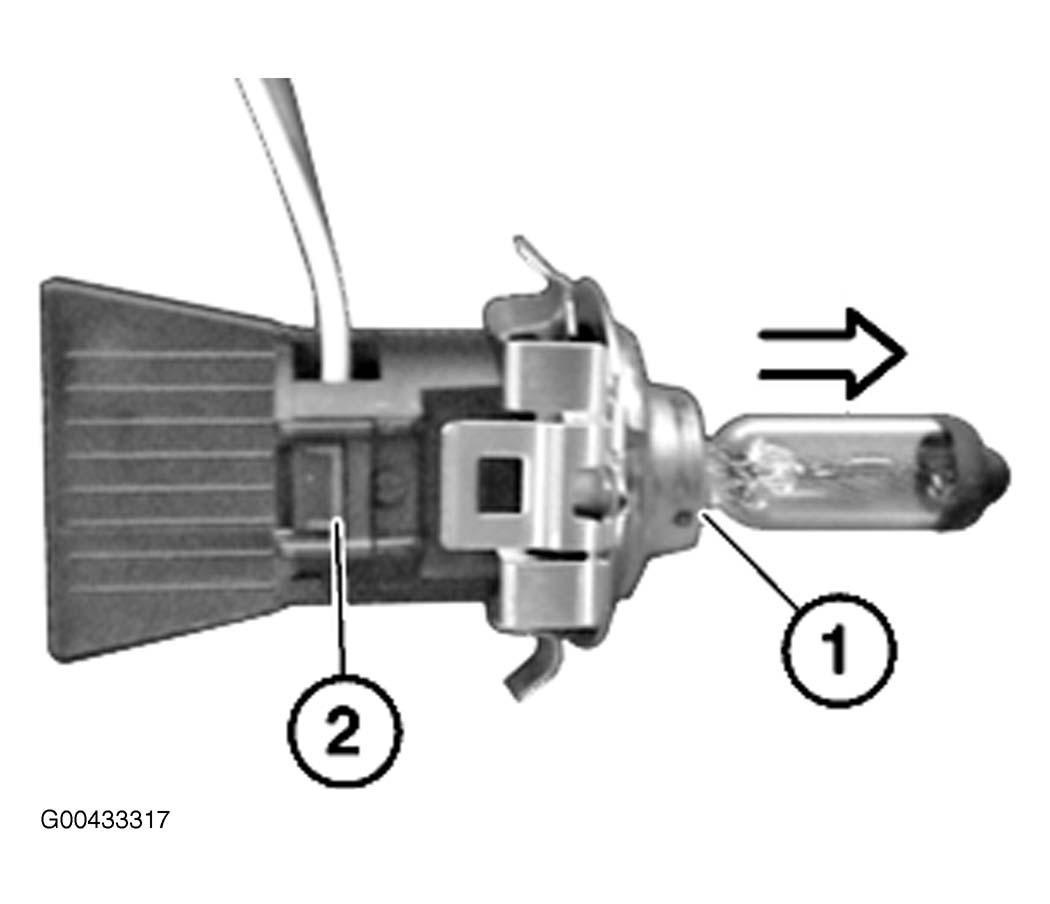

Pull bulb (1) out of bulb holder (2) in direction of arrow.

Installation:

Make sure bulb (1) is exactly seated in bulb holder (2).

Note bulb type. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .

Fig 3: View Of Bulb In Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
