63 26 000 Removing and installing/replacing left or right license plate light

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

64 1 020

Slide license plate light (1) in direction of arrow slightly and lever out with special tool 64 1 020.

Unlock plug connection underneath and disconnect.

Remove license plate light (1).

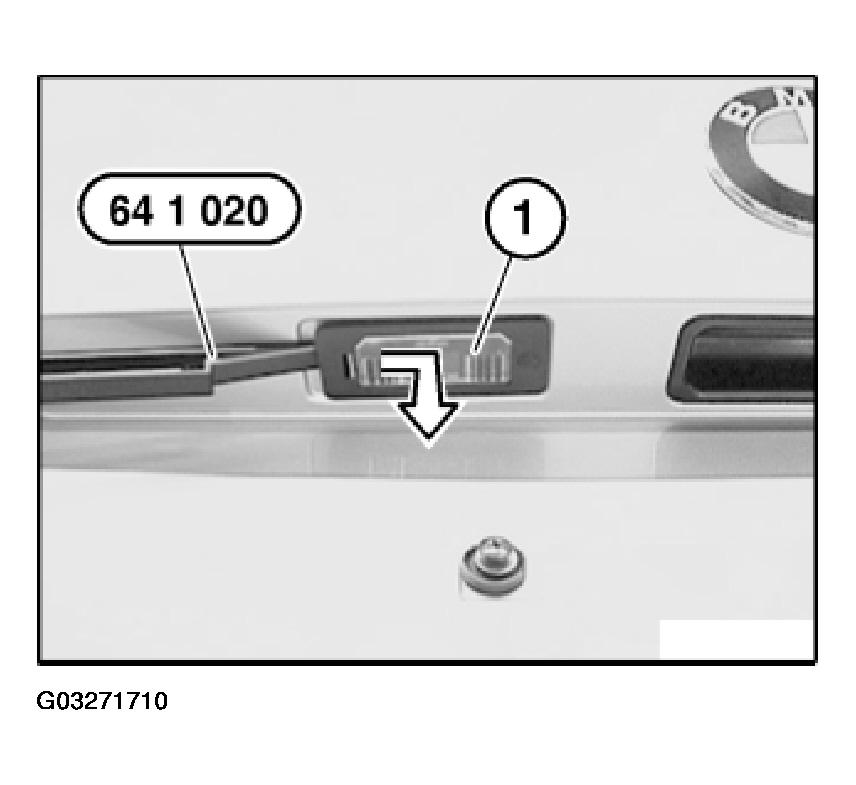

Fig 1: Removing License Plate Light Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
