63 31 000 Removing and installing/replacing complete ceiling light (front)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 00 9 317
IMPORTANT:
Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .
Replacement:
If necessary, convert bulbs.

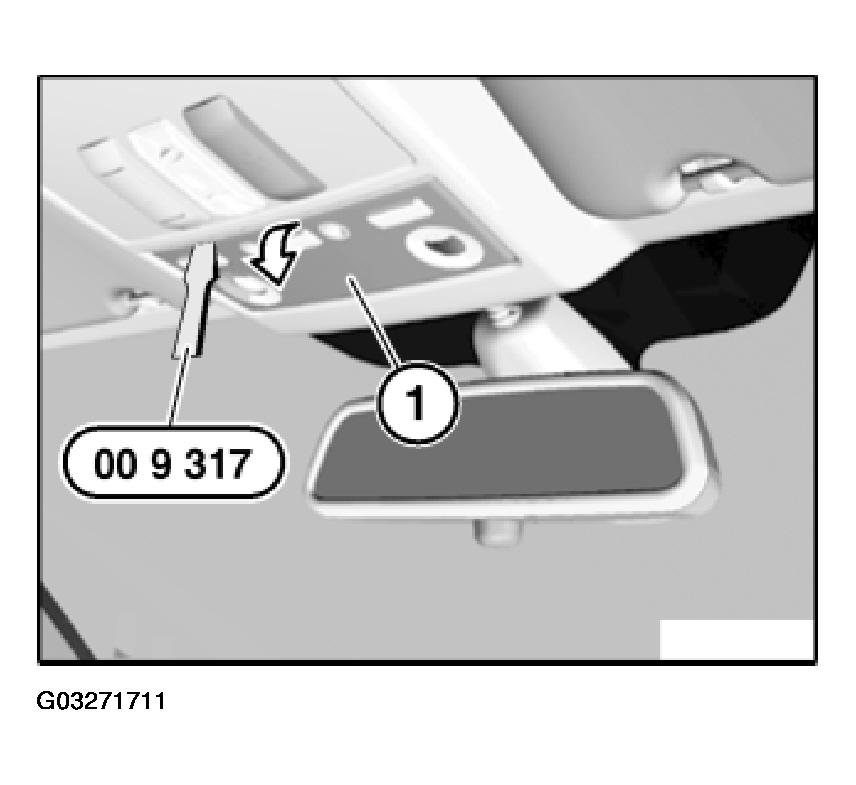

Lever out ceiling light (1) with special tool 00 9 317 as illustrated.
Disconnect plug connection underneath and remove ceiling light (1).
Replacement:
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .
