63 14 120 Removing and installing/replacing rear reflector
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 64 1 020
NOTE:
Illustrations depict removal of the rear left reflector. The rear right reflector is removed in the same way as the rear left reflector.

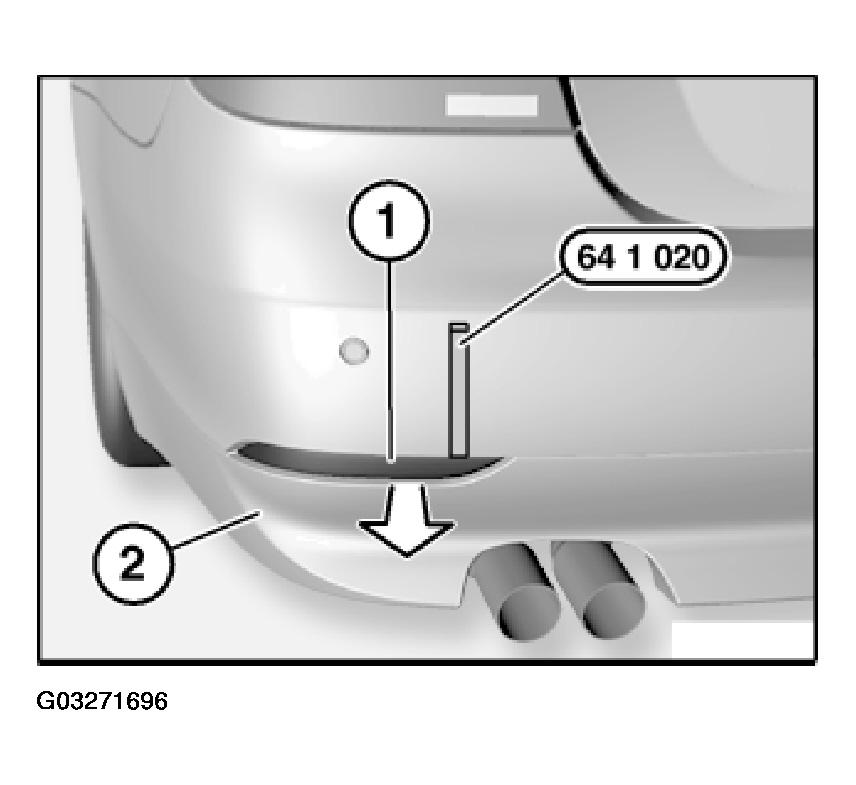

Unclip reflector (1) with special tool 64 1 020 on right side.
Remove reflector (1) towards rear from rear bumper trim (2).
