62 11 280 Removing and installing (replacing) instrument cluster

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE:

Comply with notes and instructions on handling fibre-optic cables. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary Preliminary Tasks:

Extend steering wheel completely and lower.
Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY LEAD .

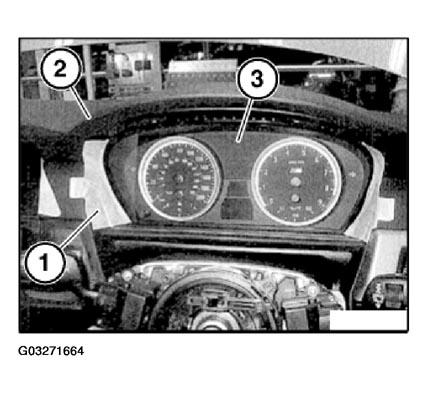

IMPORTANT: Risk of damage! Cover instrument panel (2) on both sides of instrument cluster (3) with suitable protective film (1) to prevent damage.

Fig 1: View Of Instrument Panel And Instrument Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull back instrument cluster (2) slightly. Unlock associated plug connection and disconnect. Feed out/unclip associated wiring harness. Remove instrument cluster (2).

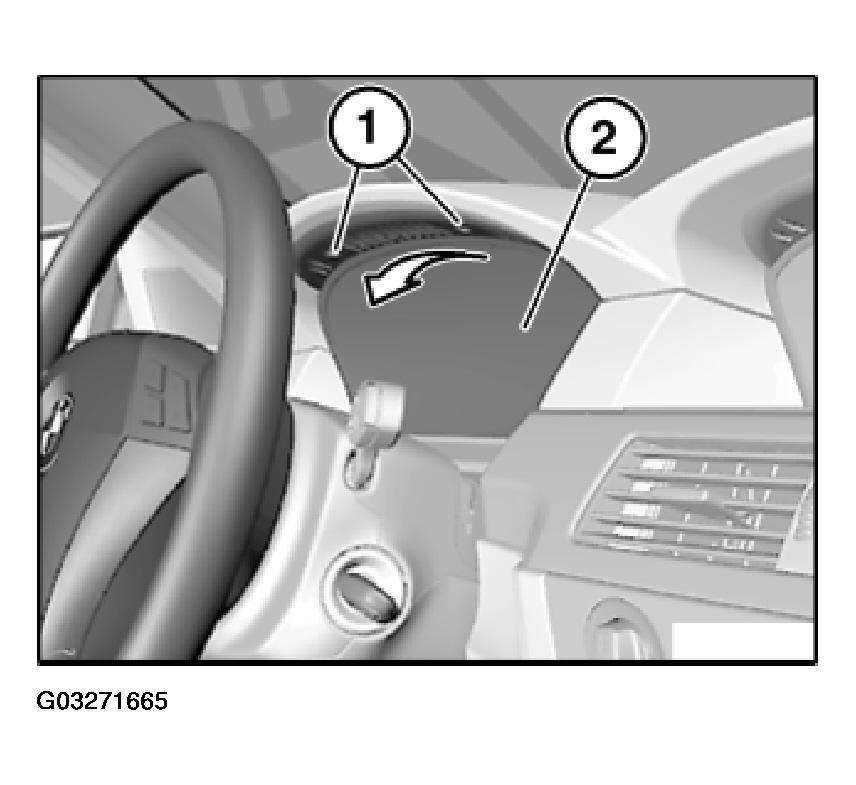

Fig 2: Locating Instrument Cluster Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
