62 30 010 Removing and installing/replacing headup display

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

IMPORTANT: Do not scratch head-up display lens!

Necessary Preliminary Tasks:

Remove instrument panel trim. Refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

NOTE: Comply with notes and instructions on handling optical waveguides. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Release screws (1). Remove air duct (2) from air distributor (3). If necessary, remove fitted foam seal (4) from head-up display (5).

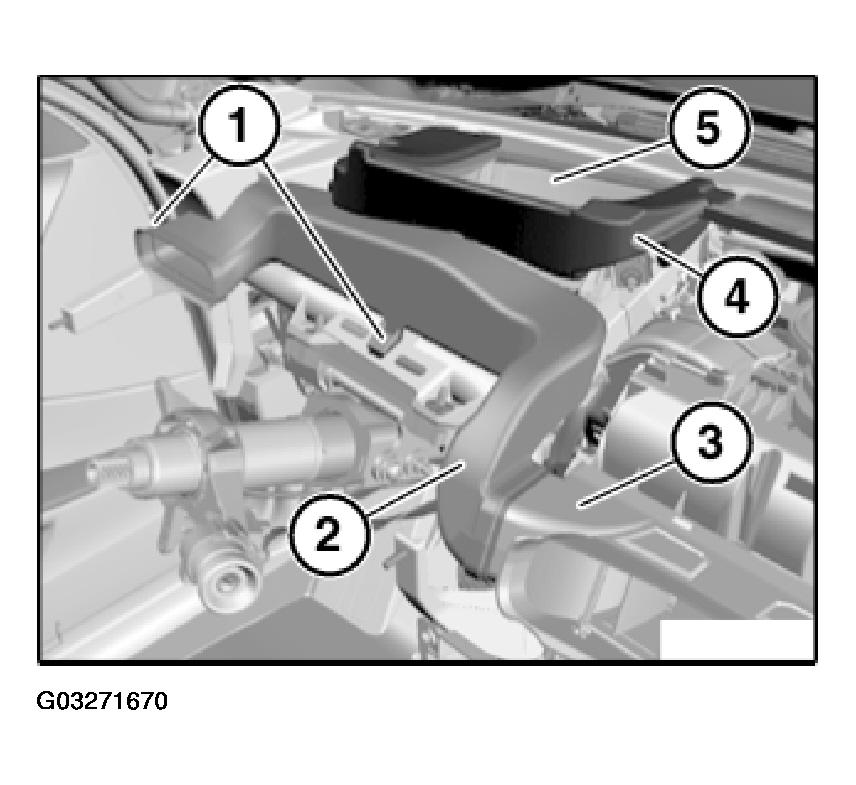

Fig 1: View Of Air Duct And Air Distributor

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unclip fitted flexible shaft (display adjustment). Refer to 62 30 ... ADJUSTING HEAD-UP DISPLAY (DISPLAY ADJUSTMENT) .

Installation:

Clean head-up display lens.
Adjust head-up display (5). Refer to 62 30 ... ADJUSTING HEAD-UP DISPLAY (DISPLAY ADJUSTMENT) and 62 30 517 ADJUSTING HEAD-UP DISPLAY (HEIGHT ADJUSTMENT) .
Make sure eccentric (2) is in correct installation position.
If fitted, make sure flexible shaft is in correct installation position.

Release lock nut (1) and remove.

Remove eccentric (2) in direction of arrow. Release screws (3).

Pull head-up display (5) back slightly and fold upwards. Unlock and disconnect plug connection (4) and remove headup display (5).

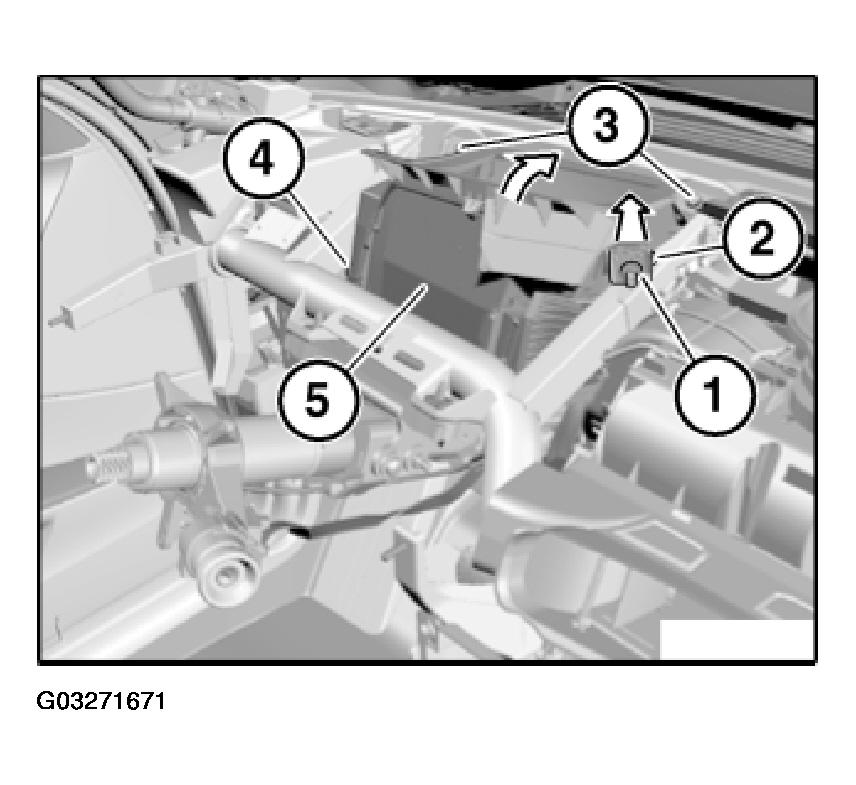

Fig 2: Locating Eccentric And Retaining Locknut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure centering caps (1) are correctly seated on lugs (2) of head-up display (3).

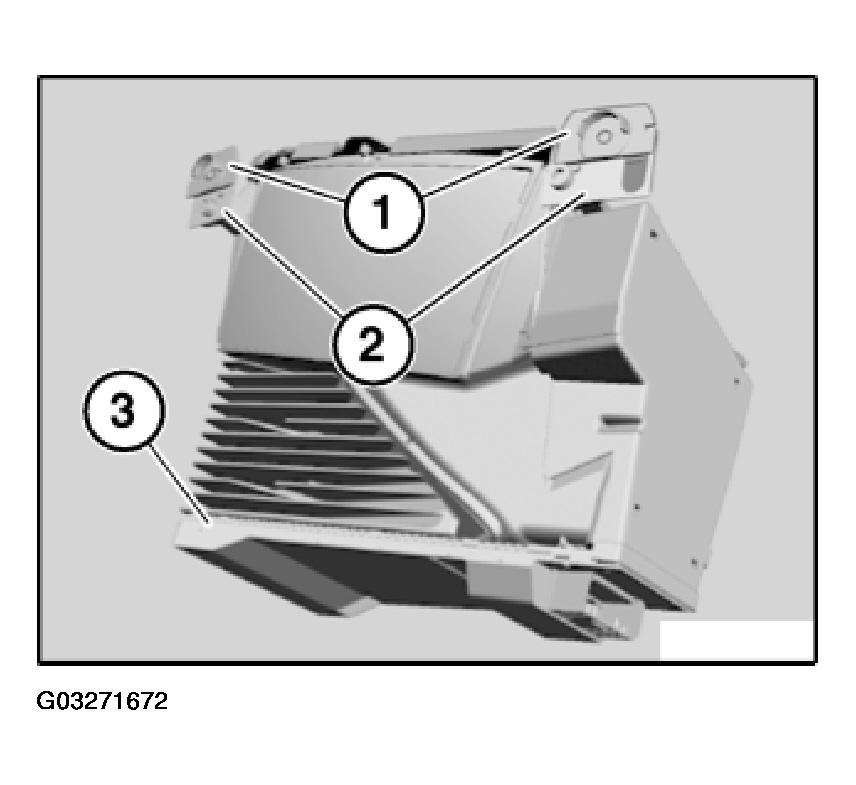

Fig 3: View Of HUD Centering Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
