62 30 005 Removing and installing/replacing trim for head-up display

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Lever out trim for head-up display (1) with special tool 00 9 317 from mounting points (2).

Feed trim for head-up display (1) in direction of arrow out of instrument panel trim (2) and remove.

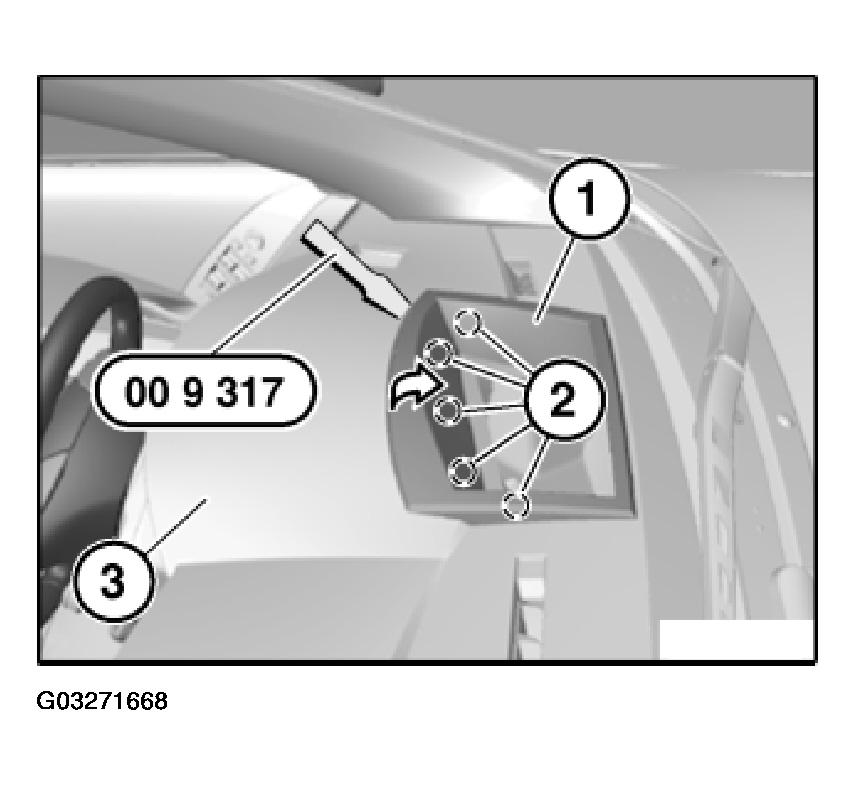

Fig 1: Removing Trim For Head-Up Display Using Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure retaining lugs (1) and (2) and sleeve (3) of trim for head-up display (4) are correctly seated.

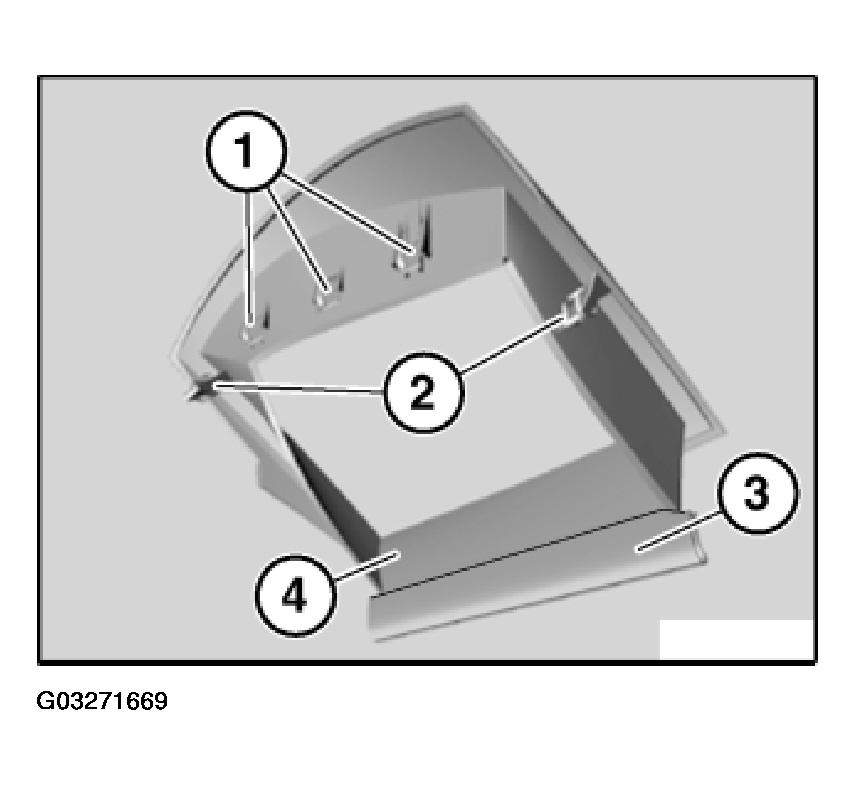

Fig 2: Identifying Retaining Lugs Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
