61 71 100 Removing and installing/replacing windscreen washer pump

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

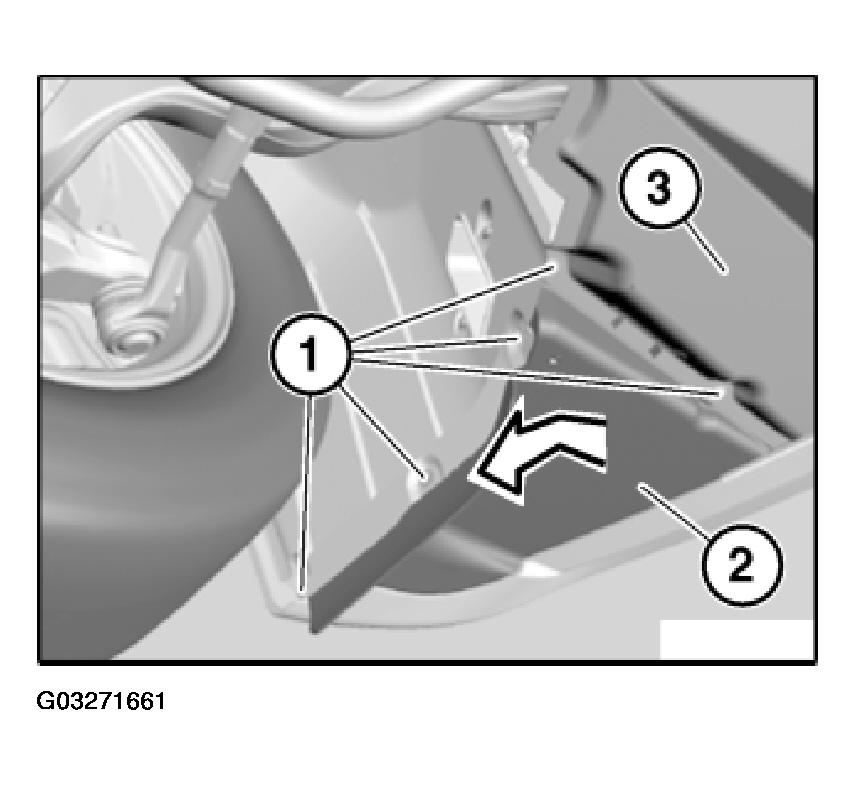

Fig 1: Removing Cover From Front Underride Protection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows front wheel removed.

Unfasten screws.

Fold back wheel arch trim (1) slightly in direction of arrow.

Fig 2: Locating Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Catch any escaping washer fluid if necessary.

Disconnect plug connection (1).

Detach hose (2) from windscreen washer pump (3).

Pull windscreen washer pump (3) up and out of fluid reservoir for windscreen washer system (4).

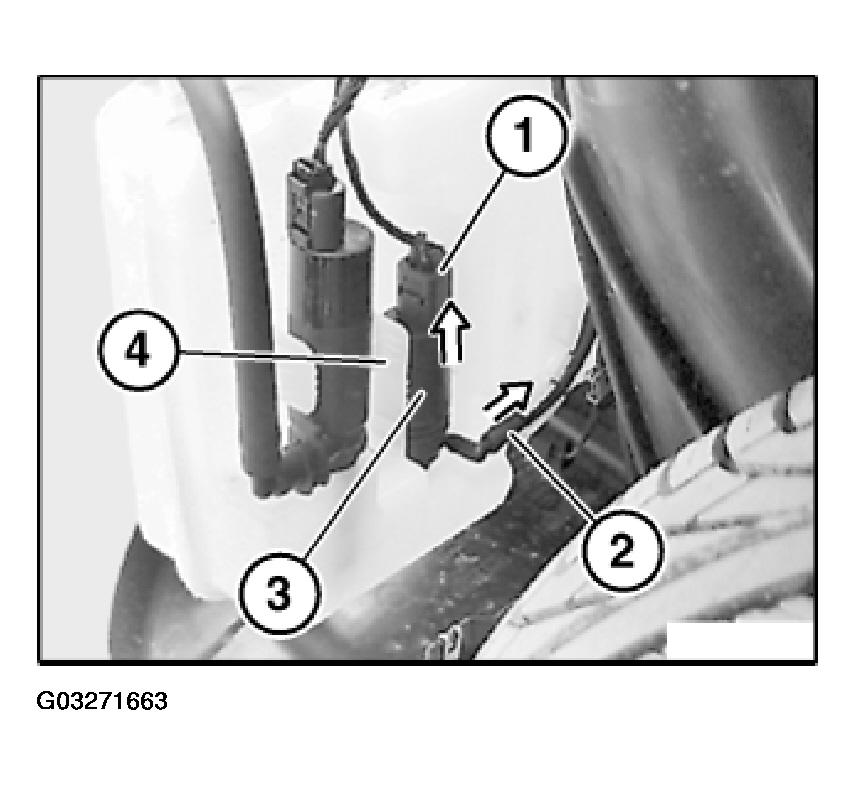

Fig 3: View Of Windscreen Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace strainer for windscreen washer pump.
If necessary, coat sealing ring of windscreen washer pumps with antiseize agent.
Ensure hose is laid without kinks.
Fill fluid tank for windscreen washer system.
