61 71 015 Removing and installing/replacing a jet nozzle in windshield washer system
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The jet nozzles of the windshield washer system are preset at the factory and cannot be readjusted.

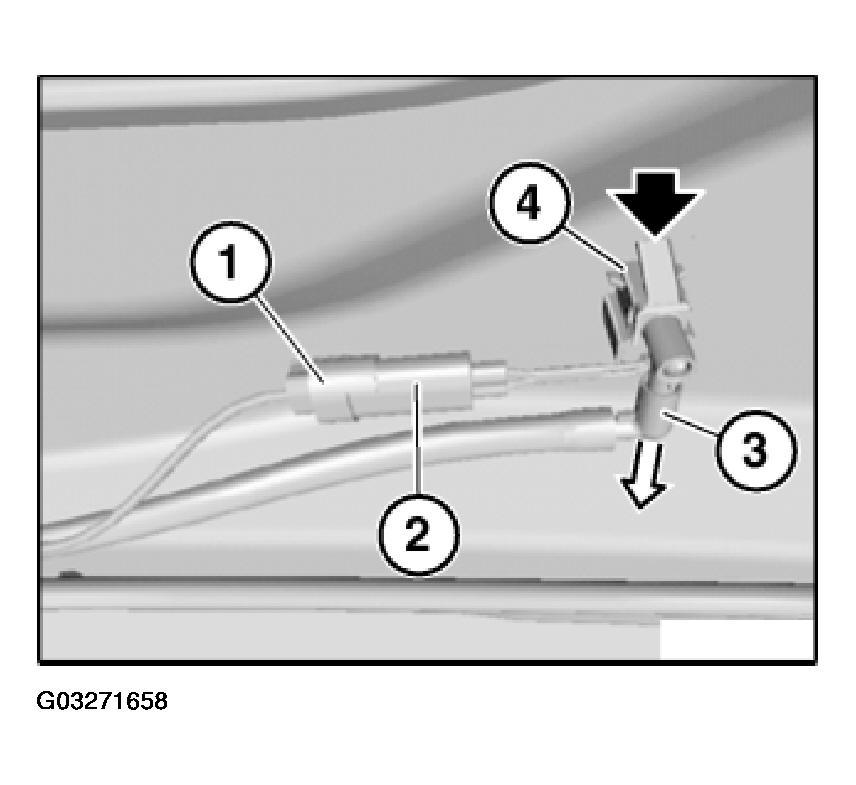

Unfasten plug connection (1) and disconnect.
Unlock plug housing (2) and disconnect.
Detach connector (3) in direction of arrow from nozzle of windshield washer system (4).
Unlock nozzle of windshield washer system (4), press out through opening and remove.
Installation:
Make sure nozzle of windshield washer system (4) is correctly seated.
Ensure hose is laid without kinks.
