61 31 492 Replacing level switch for windscreen washer system

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

Fig 1: Locating Cover In Front Underride Protection

Courtesy of BMW OF NORTH AMERICA, INC.

E60, E61 With M Aerodynamic Kit Only:

Catch any escaping washer fluid if necessary.

Unfasten plug connection (1) and disconnect.

Turn level switch for windscreen washer system (2) in direction of arrow, pull down out of fluid reservoir (3) and remove.

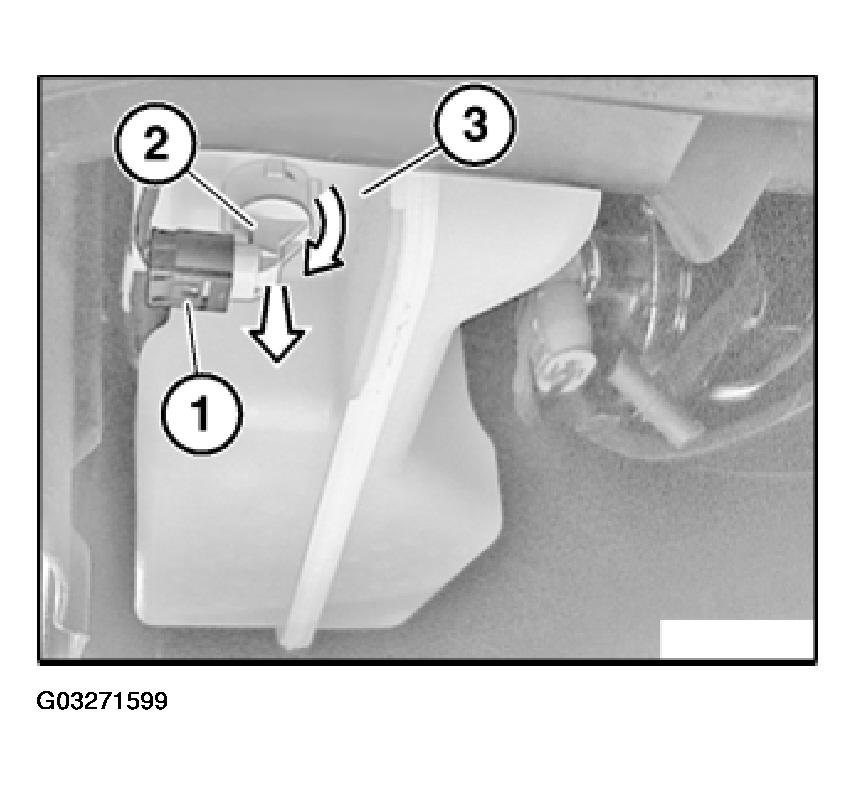

Fig 2: Identifying Level Switch For Windscreen Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

All Others:

Catch any escaping washer fluid if necessary.

Unfasten plug connection (1) and disconnect.

Turn level switch for windscreen washer system (2) in direction of arrow, pull down out of fluid reservoir (3) and remove.

Installation:

Fill fluid tank for windscreen washer system.

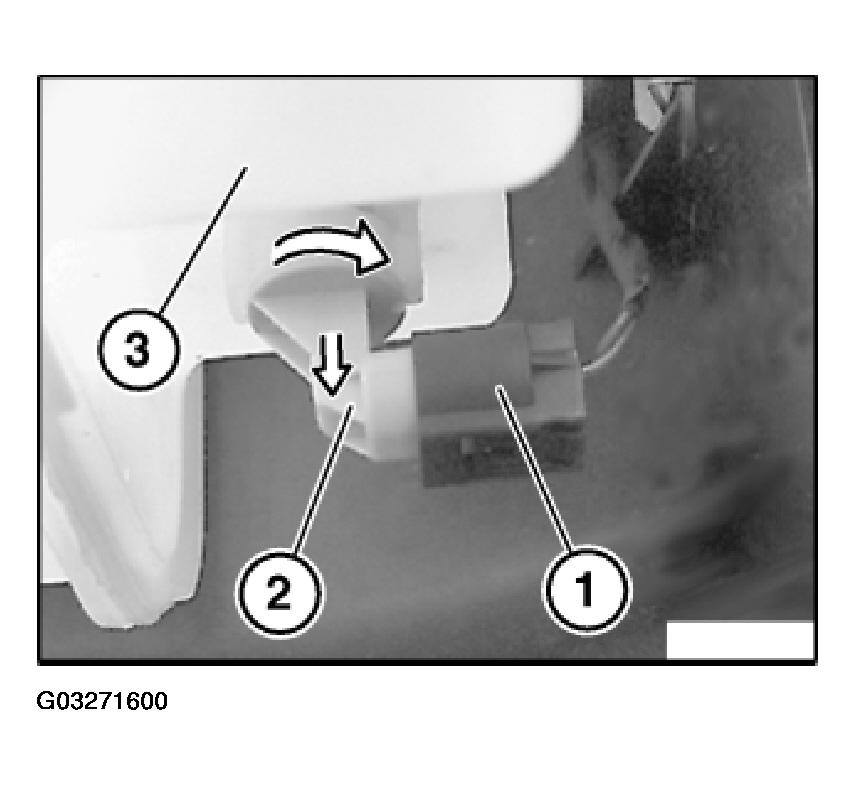

Fig 3: Turning Level Switch For Windscreen Washer System

Courtesy of BMW OF NORTH AMERICA, INC.
