61 31 382 Replacing level switch for coolant
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding! Only perform this work after engine has cooled down.

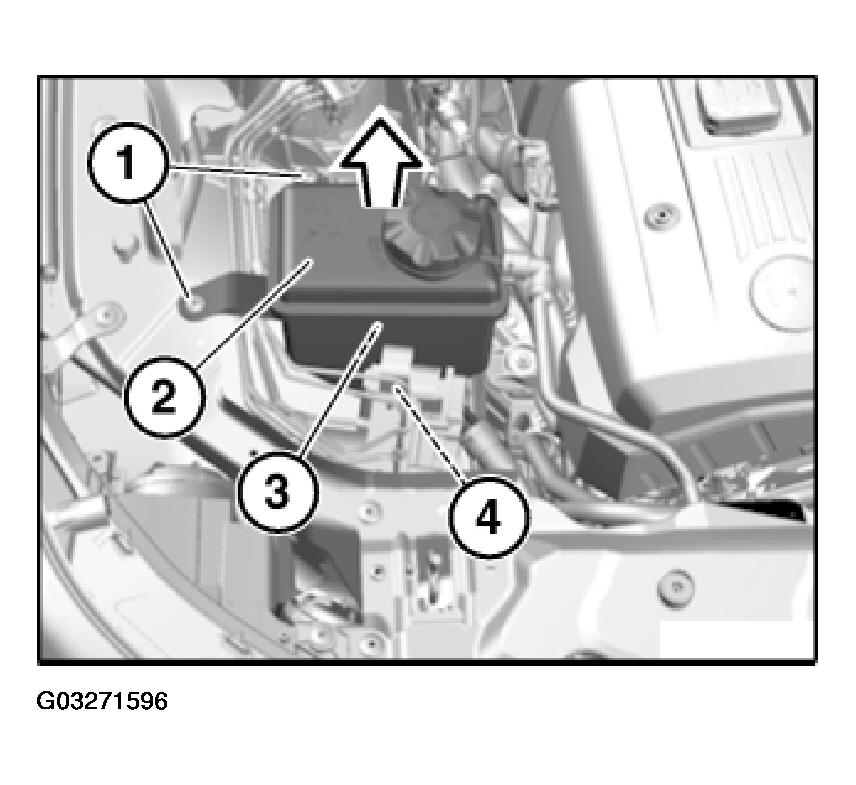

Release screws (1).
Unlock plug connection for coolant level switch (4) and disconnect.
Pull coolant expansion tank (2) in direction of arrow out of grommet (3) underneath.
Installation:
Make sure coolant expansion tank (2) is correctly seated in grommet (3).
If necessary, replace grommet (3).
IMPORTANT:
Do not damage connected water hoses. Reposition coolant expansion tank (2) as far as possible until coolant level switch (4) forms the highest point. This will prevent coolant from escaping on opening. If necessary, catch escaping coolant and feed back in later.
NOTE:

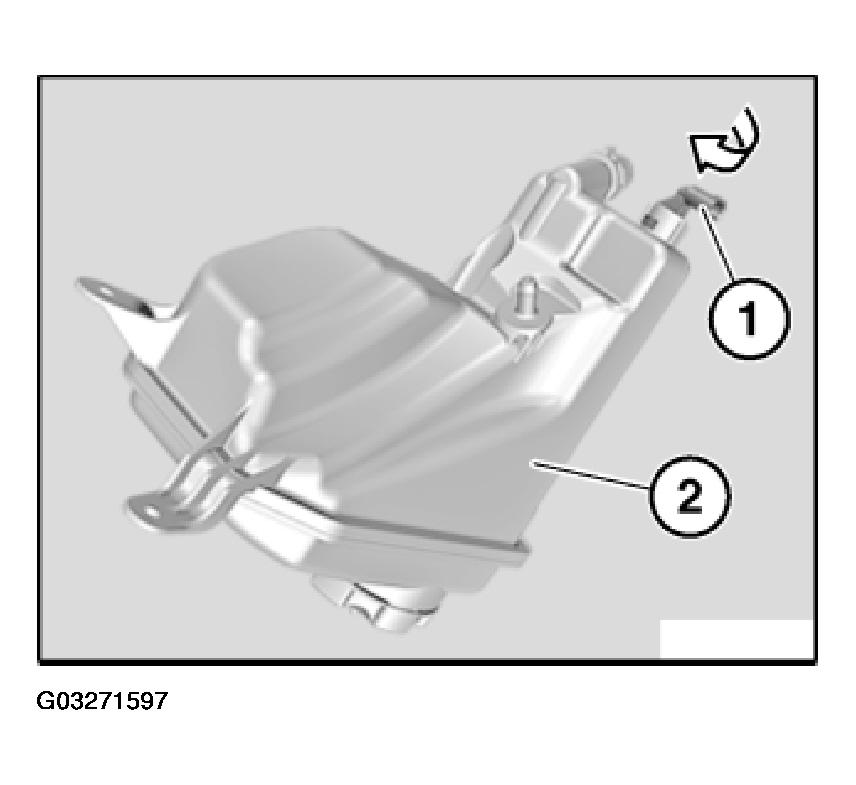

For purposes of clarity, illustration shows coolant expansion tank (2) removed.
Turn coolant level switch (1) in direction of arrow, pull upwards out of coolant expansion tank (2) and remove.
