61 31 287 Removing and installing/replacing driving dynamics switch
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 64 1 020
Necessary Preliminary Tasks:
- Remove finisher for preselector lever. Refer to 51 16 210 REMOVING AND INSTALLING/REPLACING TRIM FOR PRESELECTOR LEVER (GEARSHIFT LEVER) .

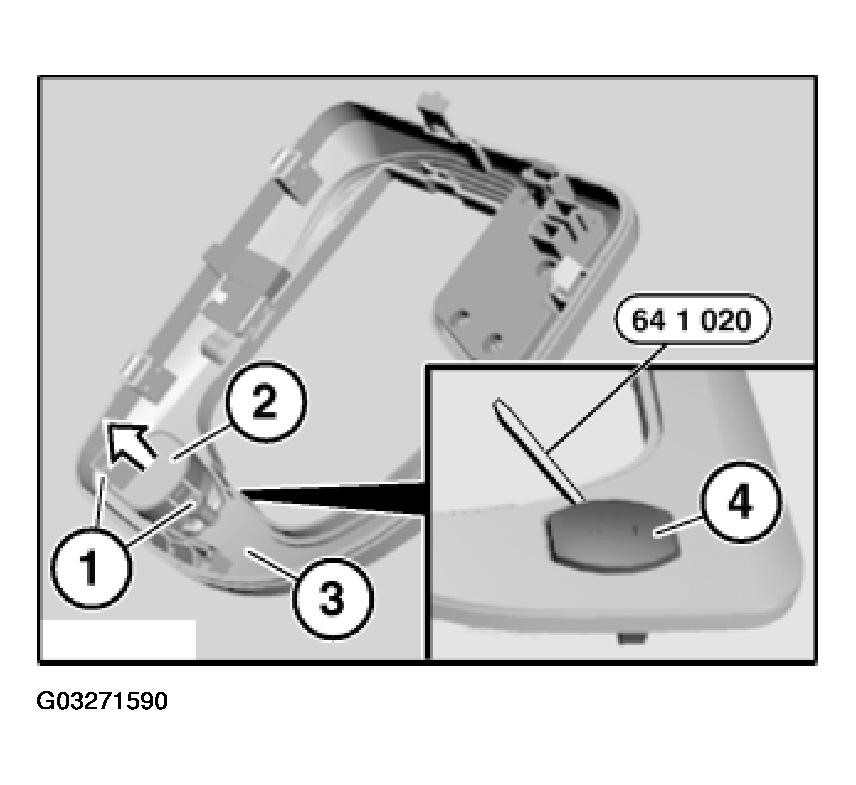

Release screws (1).
If necessary, lever out actuation trim (4) with special tool 64 1 020 and remove.
Remove driving dynamics switch (2) in direction of arrow from finisher for preselector lever (3).
