61 31 203 Replacing seat adjustment switch combination (fully electric front seat)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove outer cover on front seat. Refer to 52 17 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT (COMFORT) .

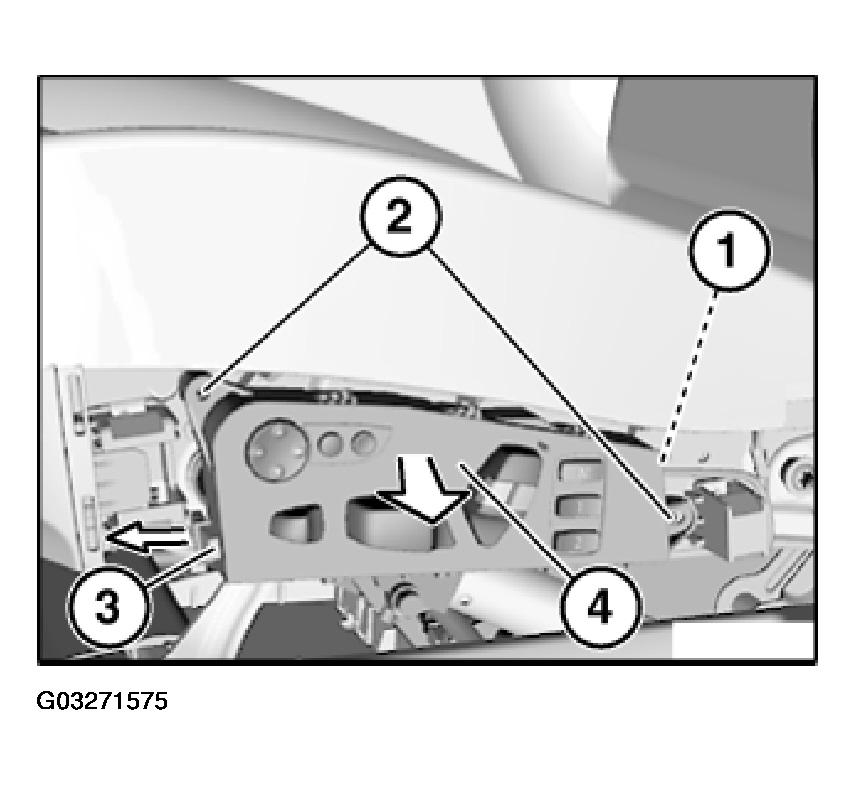

Unfasten plug connection (1) and disconnect.
Loosen screws (2).
Unlock catch (3) in direction of arrow and remove seat adjustment switch combination (4) towards front.
