61 31 193 Removing and installing/replacing button unit (for on-board monitor)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 00 9 341

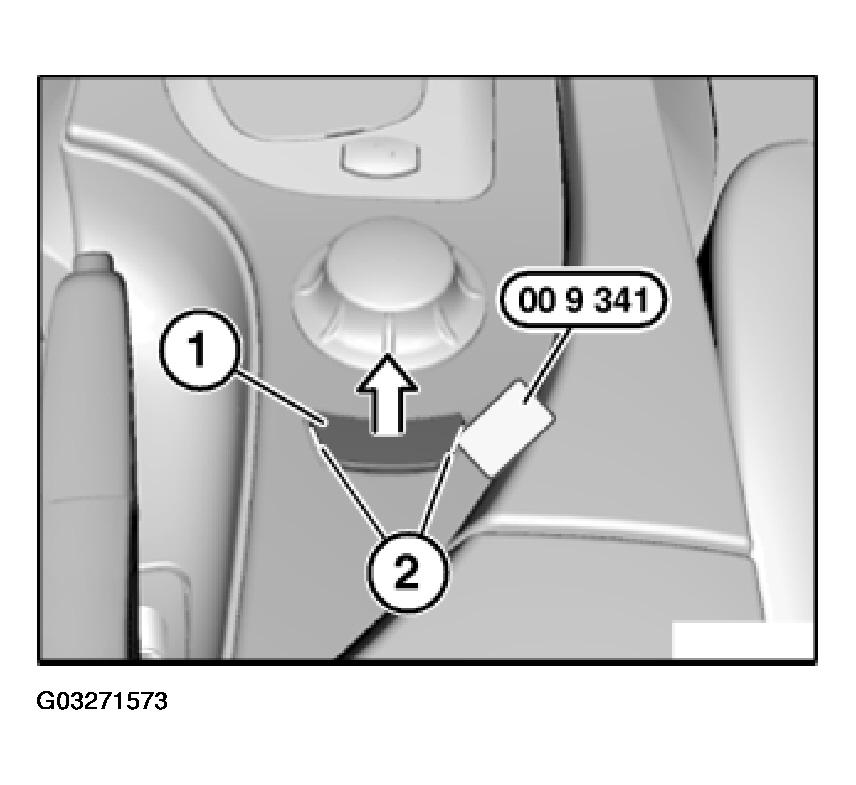

Unclip button unit (1) with special tool 00 9 341 at retaining points (2) and lever out in direction of arrow.
Unlock and disconnect associated plug connection, remove button unit (1).
