61 31 175 Removing and installing/replacing switch for slide/tilt sunroof
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front roofliner trim. Refer to 51 44 ... REMOVING AND INSTALLING FRONT ROOFLINER TRIM .

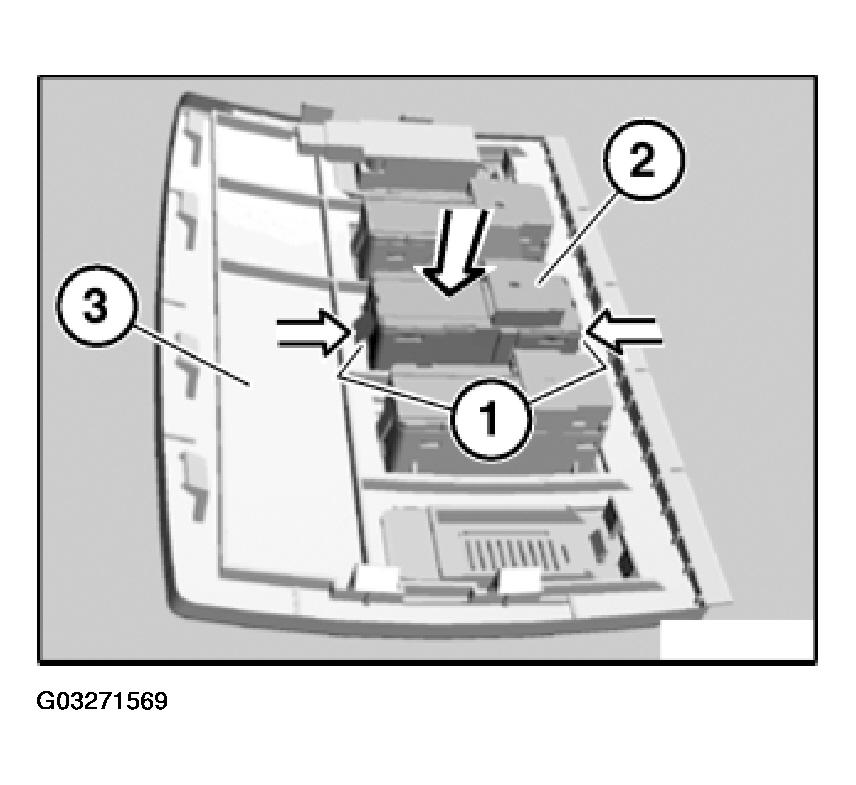

Press catches (1) and unclip switch for sunroof (2) in direction of arrow from front roofliner trim (3).
Installation:
- Initialize slide/tilt sunroof. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
